Panel i Connection And Maintenance Manual Page 155

Connection And Maintenance Manual
B-64223EN/01 MAINTENANCE 6.MAINTENANCE SUPPLIES
- 143 -
(4) With a soft, damp cloth, wipe off the detergent completely.
If the surface of the touch panel is cloudy, oil is still left.
Remove oil completely.
If oil or detergent is left on the surface of the touch panel, the
protection sheet cannot adhere to the panel completely and will
sometimes peel off easily.
(5) With a soft, dry cloth, wipe off moisture completely.

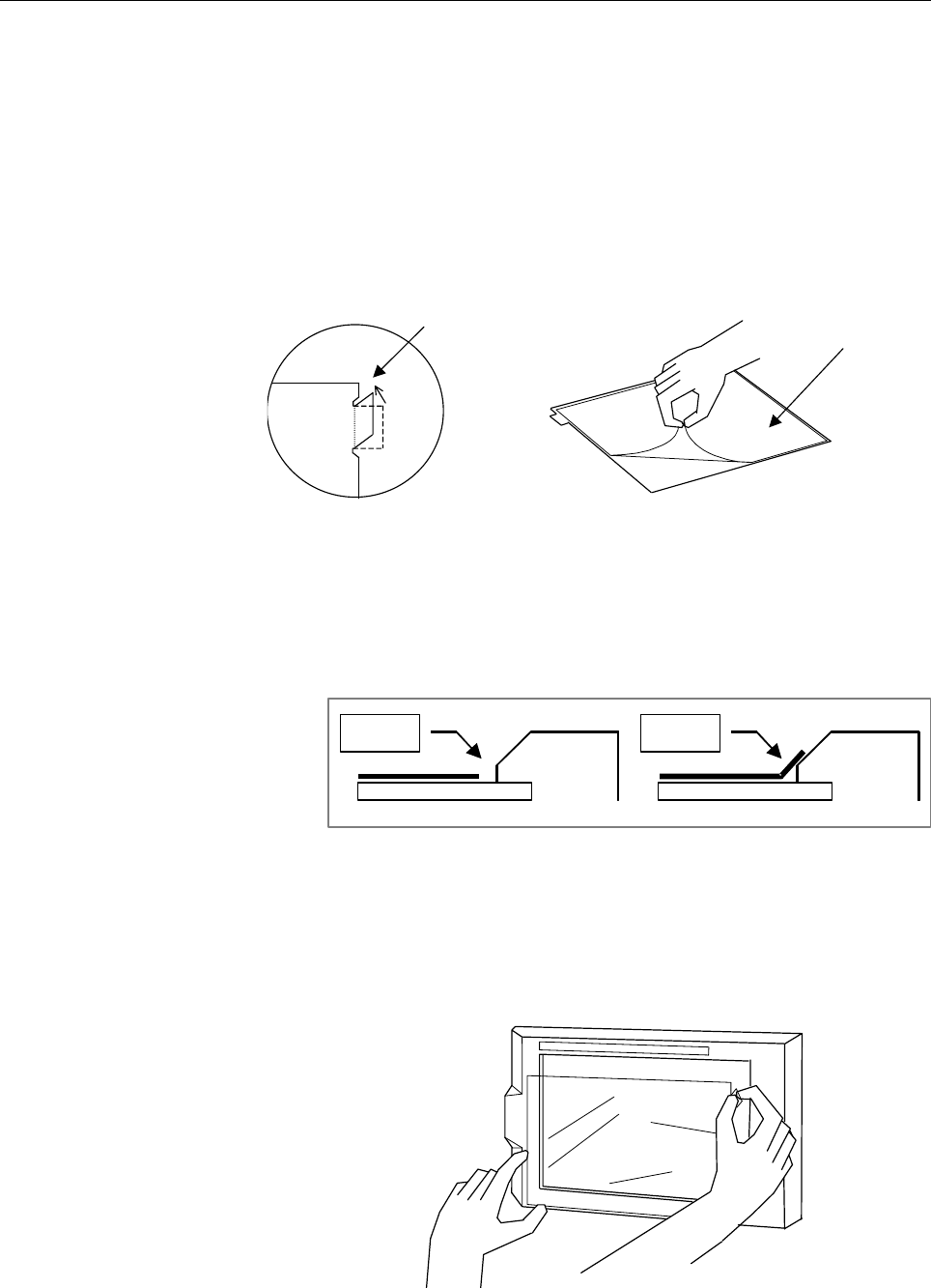

(6) Bend a tab for exchange to surface side in accordance with the
following left-side picture.(At an angle of about 60°)
(7) Strip the white film on the back of the new Touch Panel
Protection Sheet (this side is to stick on the LCD face) off.
Protection
Sheet
Tab for exchange
Surface
LCD side
(8) Position the sheet, then attach the top and bottom sides of the
sheet first so that the tab for exchange is placed at the upper-right
corner.
At this time, check that each side of the protection sheet does not
touch the escutcheon.
Be careful so as not to allow dirt to enter between the LCD and
protection sheet.
NGOK
(9) Attach the right and left sides of the protection sheet while
pushing out air between the touch panel and protection sheet.
With part of the protection sheet kept stuck to the touch panel, do
not attempt to correct the position of the protection sheet by
pulling the sheet.
(10) Press the adhesive parts of the four sides, and attach the entire
sheet completely.
