Panel i Connection And Maintenance Manual Page 145

Connection And Maintenance Manual
B-64223EN/01 MAINTENANCE 6.MAINTENANCE SUPPLIES
- 133 -
6.5 METHOD OF EXCHANGING FAN
6.5.1 Method of Exchange Fan of the PANEL i
(1) Make sure that PANEL i is turned off.
(2) Prepare a new FAN .
(3) Pull out the connector of fan power. This connector has a latch,
therefore release the latch and pull out it as below figure.
(4) Exchange a fan. Attention to the direction of air flow.
(5) Connect a plug of 60mm FAN(-K101) to CPE11B. Connect a
plug of 40mm FAN(-K100) to CPE11A.
(
40mmFAN
)
CPE11A
40mmFAN
A
08B-0084-K100
A
ttention to the
direction.
A
ir Flo
w
60mmFAN
A
08B-0084-K101
A
ttention to the
direction.
Release the latch of the connector with the
driver etc, then pull out the cable.
Be careful not to damage the connector with
excessive force.
(
60mmFAN
)
CPE11B

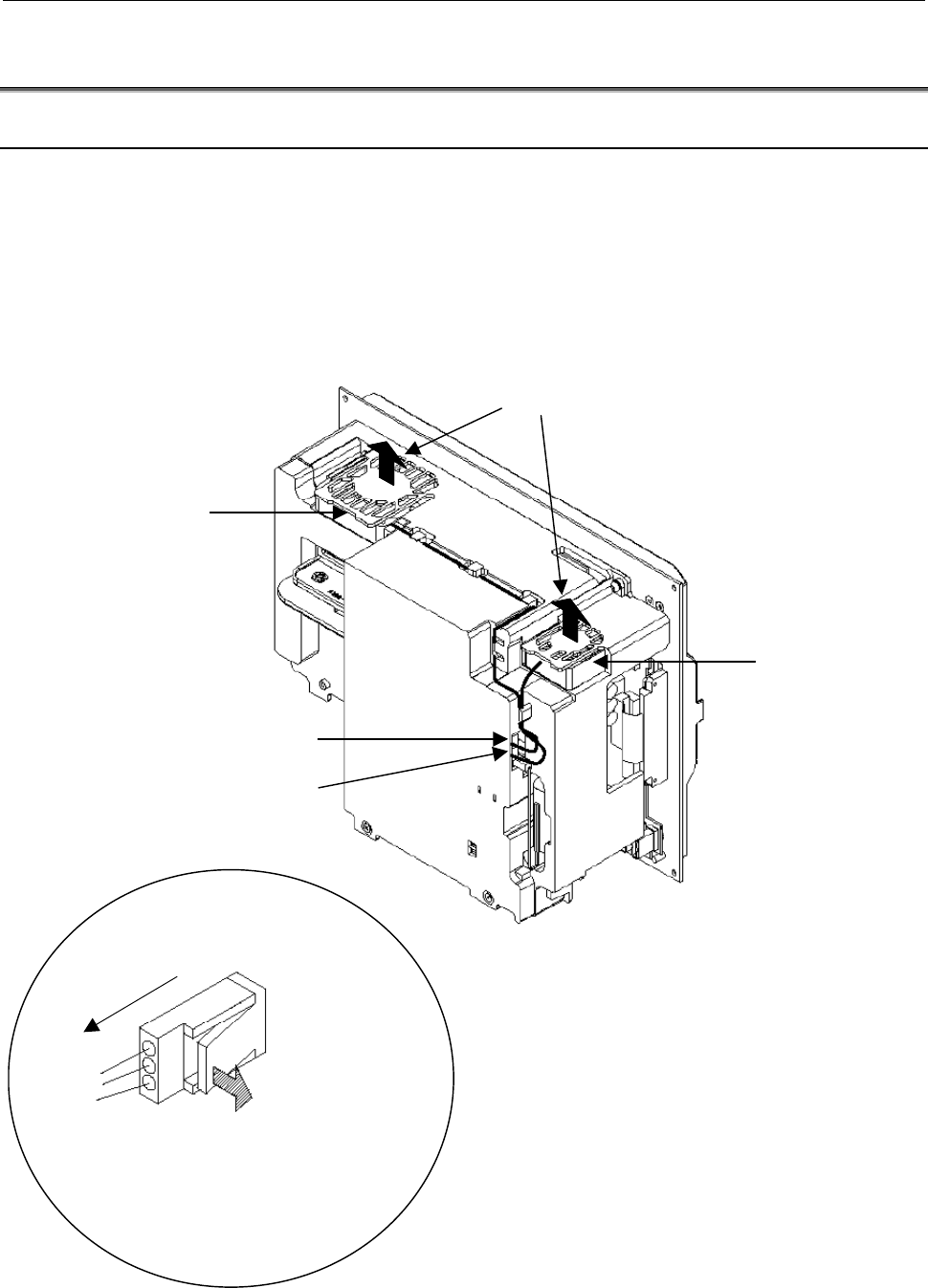

Fig. 6.5.1 Exchanging Fan of Basic Unit
