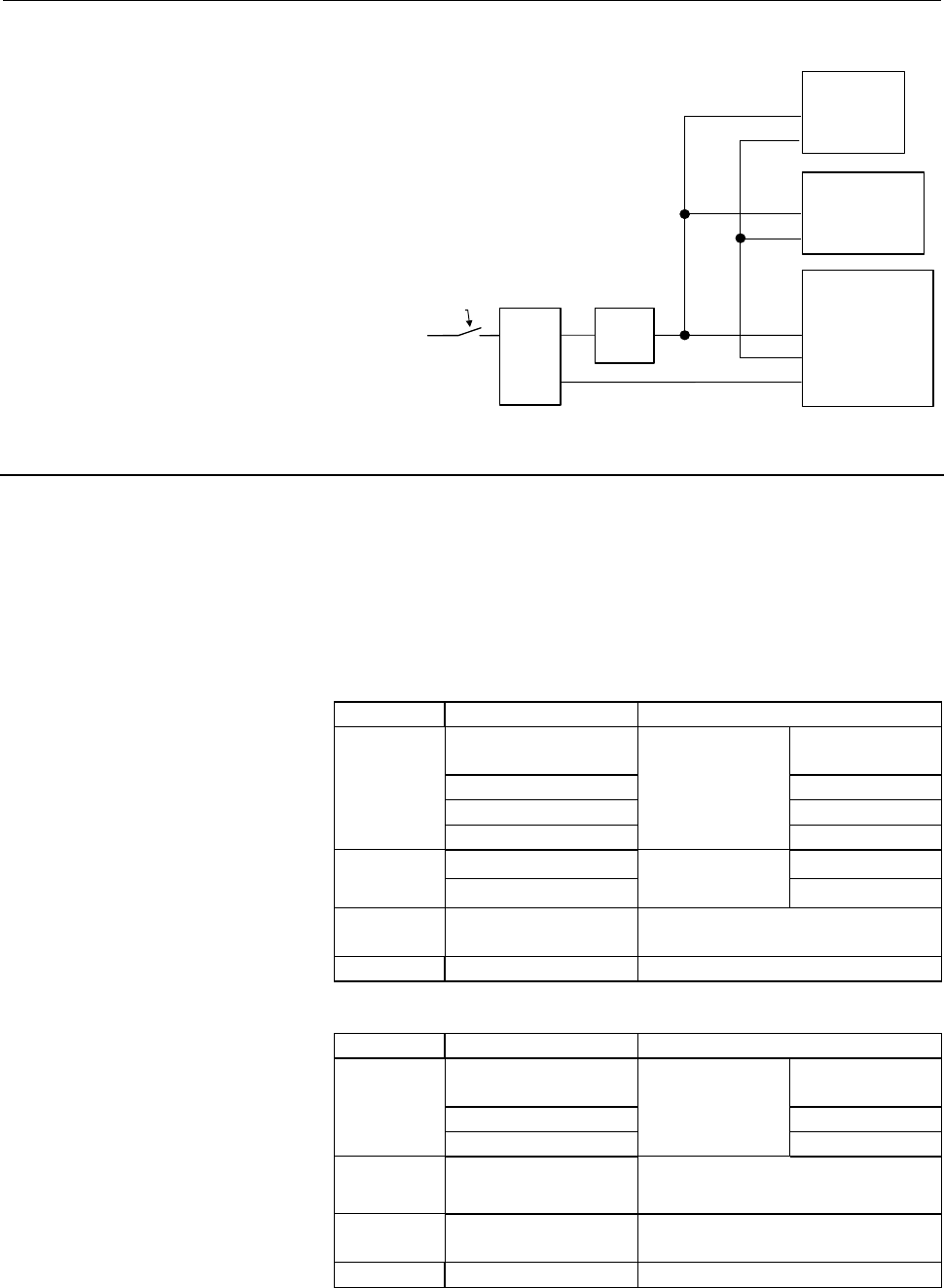

Panel i Connection And Maintenance Manual Page 27

Connection And Maintenance Manual
B-64223EN/01 CONNECTION 2.SPECIFICATIONS
- 15 -
Example 2
PANEL i
for AUTOMOTIVE
DC24IN
I/O LINK
RS232C
CNC control unit
DC24IN
I/O LINK
Serial
communication
A
C input
Power
supply
unit
ＵＰＳ
I/O
Link
Another I/O device
DC24IN
I/O LINK
Power-on/off switch
2.3.2 Power Supply
When a power supply which satisfies the above specifications is
prepared, the PANEL i and PANEL i for AUTOMOTIVE can supply
the following power to peripheral devices.
Check the power supply current of each peripheral device you want to
connect and use peripheral devices so as not to exceed the maximum
current.
PANEL i
Voltage Equipment Max. Current
Key board, Mouse
PCI extension board
IDE/ATAPI Max. 2000mA
USB device Max. 500mA/port
+5V
PCMCIA card
4000mA in total
Max. 500mA
PCI extension board +3.3V
PCMCIA card
3000mA in total
Max. 1000mA
+12V PCI extension board
IDE/ATAPI
2500mA in total
-12V PCI extension board 150mA in total
PANEL i for AUTOMOTIVE
Voltage Equipment Max. Current
Mouse
PCI extension board
USB device Max.500mA/port
+5V
PCMCIA card
1400mA in total
Max.500mA
+3.3V PCI extension board
PCMCIA card
1000mA in total
+12V PCI extension board
PCMCIA card
500mA in total
-12V PCI extension board 100mA in total
