Panel i Connection And Maintenance Manual Page 31

Connection And Maintenance Manual
B-64223EN/01 CONNECTION 3.MOUNTING
- 19 -

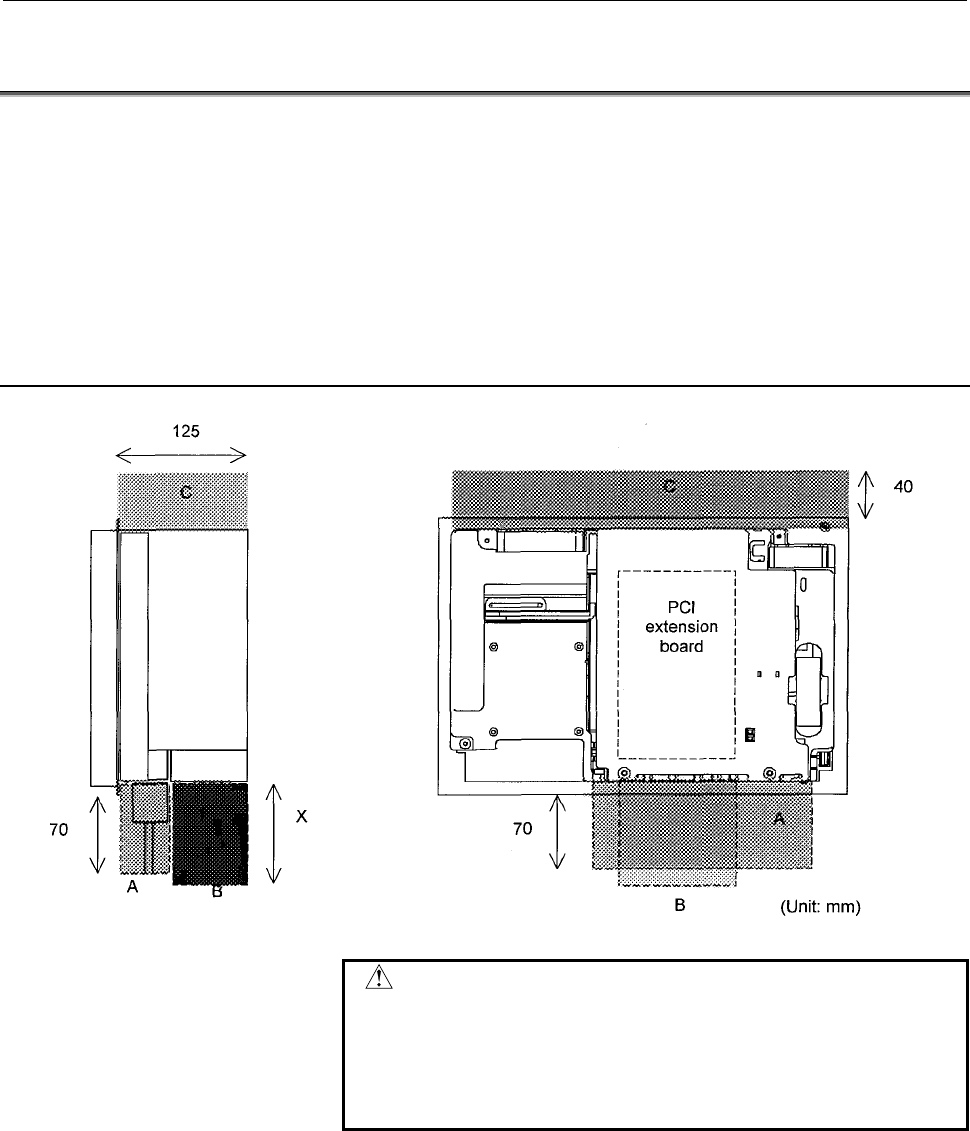

3.1 MOUNTING SPACE
The following three spaces are required around the PANEL i and
PANEL i for AUTOMOTIVE.
A: Space for connecting cables.
B: If PCI extension board exists, this space B is required for cable
connection. The dimension X depends on cables connected to the
PCI Extension board.
C: This space is required for airflow.
3.1.1 Installation Space of the 10.4" LCD Type Basic Unit
CAUTION
1 Cable connecting area is necessary under this unit.
2 When the vertical MDI or the FA full keyboard is
assembled under the above display unit, the HDD
unit cannot is assembled behind them. Please put
the HDD unit on another place.
