6.MAINTENANCE SUPPLIES MAINTENANCE B-64223EN/01
- 142 -
6.9 METHOD OF EXCHANGING TOUCH PANEL PROTECTION
SHEET
PANEL i has a Touch Panel Protection Sheet on the face of Touch
Panel to protect the Touch Panel. When the screen cannot be watched
clearly because of some damages or stains, exchange the Touch Panel
Protection Sheet. Please prepare the following.
Name Specification
160i /180i /210i with softkey
300i
A02B-0236-K110for
10.4”LCD
160i /180i /210i without softkey
A02B-0236-K130
for 12.1”LCD A02B-0236-K118
Touch panel
protection
sheet
for 15.0”LCD A08B-0082-K020
Neutral detergent (having good oil removal properties.
Neutral detergents for kitchen are applicable.)
Soft cloth (Towels are applicable.)
CAUTION
Touch panel operations are performed by directly
specifying items on the LCD screen. For these
operations, be sure to use the touch panel pen
(A02B-0236-K111) supplied by FANUC. If you
use a pointed pen to specify an item on the LCD
screen, the surface of the LCD may be scratched
or damaged. If you touch the LCD screen with
your finger, operability may degrade or the screen
may become dirty. Do not touch the LCD screen
with your fingers.

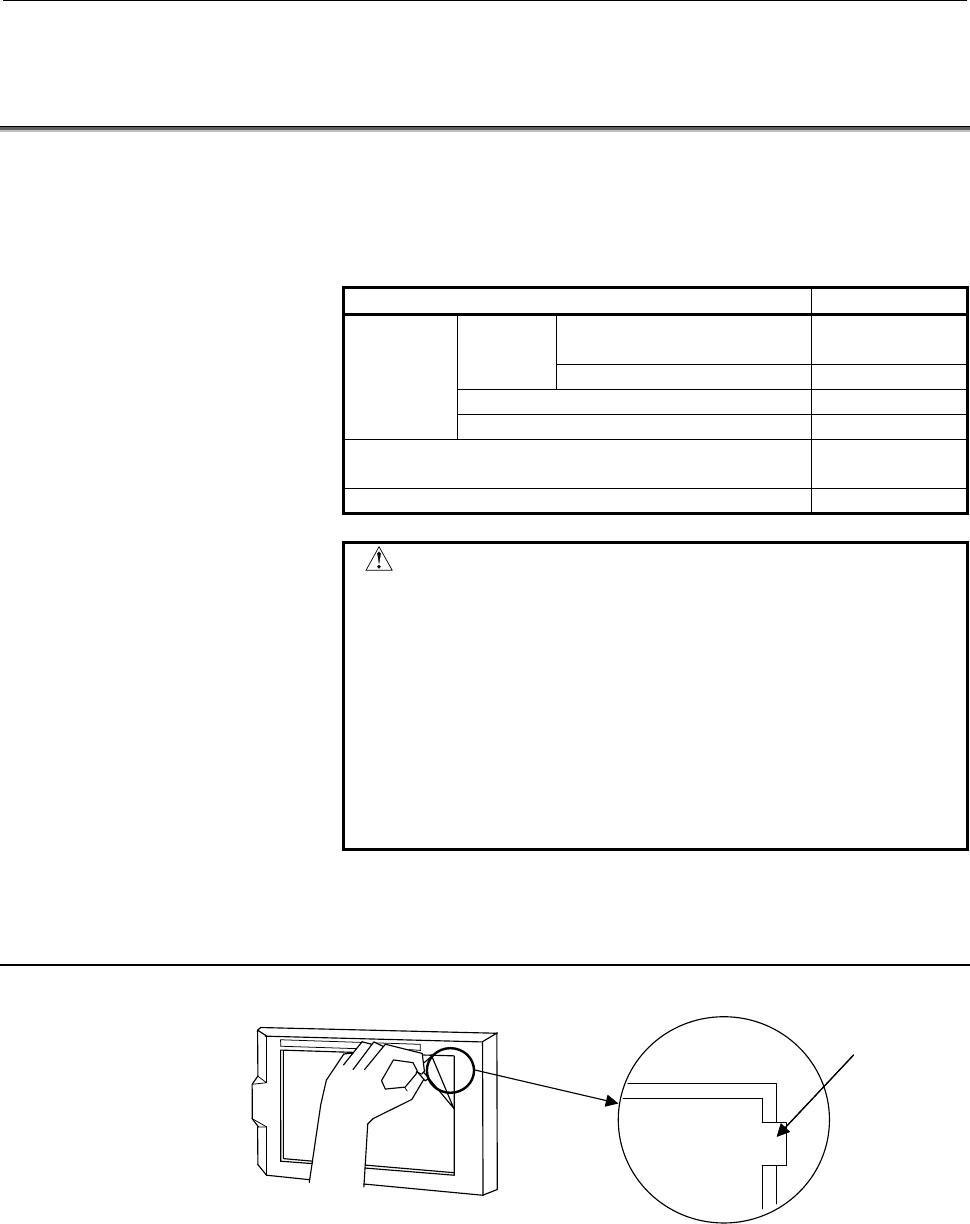

6.9.1 Method of Exchanging Touch Panel Protection Sheet (except
A02B-0236-K130)
(1) At first, strip the old Touch Panel Protection Sheet off.
Touch Panel
Protection Sheet
Tab for exchange
(2) Wipe off adhesive residue if any with alcohol.
(3) Use a neutral detergent to remove oil and dirt stuck to the surface
of the touch panel.
