PROGRAMMING

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–63684EN/01

154

If an incremental command is given in a block just after the pattern

function, the tool may not move by the incremental amount from the end

point of the pattern function. In case of bolt hole circle (G26), share proofs

(G86), square (G87), radius (G88) and cut at angle (G89).

The amount of movement attained by an incremental command just after

the bolt hole circle is the commanded incremental amount from the center

of the bolt hole circle.

In case of bolt hole circle (G26) and square (G87), the incremental amount

is from the base point of pattern, namely, center and start point

respectively.

In case of share proofs (G86), radius (G88) and cut at angle (G89), the

incremental amount is from the end point of the program.

The incremental amount is all started with the end point of the pattern

function in line at angle (G76), arc (G77), and grid (G78, G79).

å Movement of tool

(End point)

Center

Not incremental amount starting

with the end point, but incremental

amount starting with the base point

(center) of pattern.

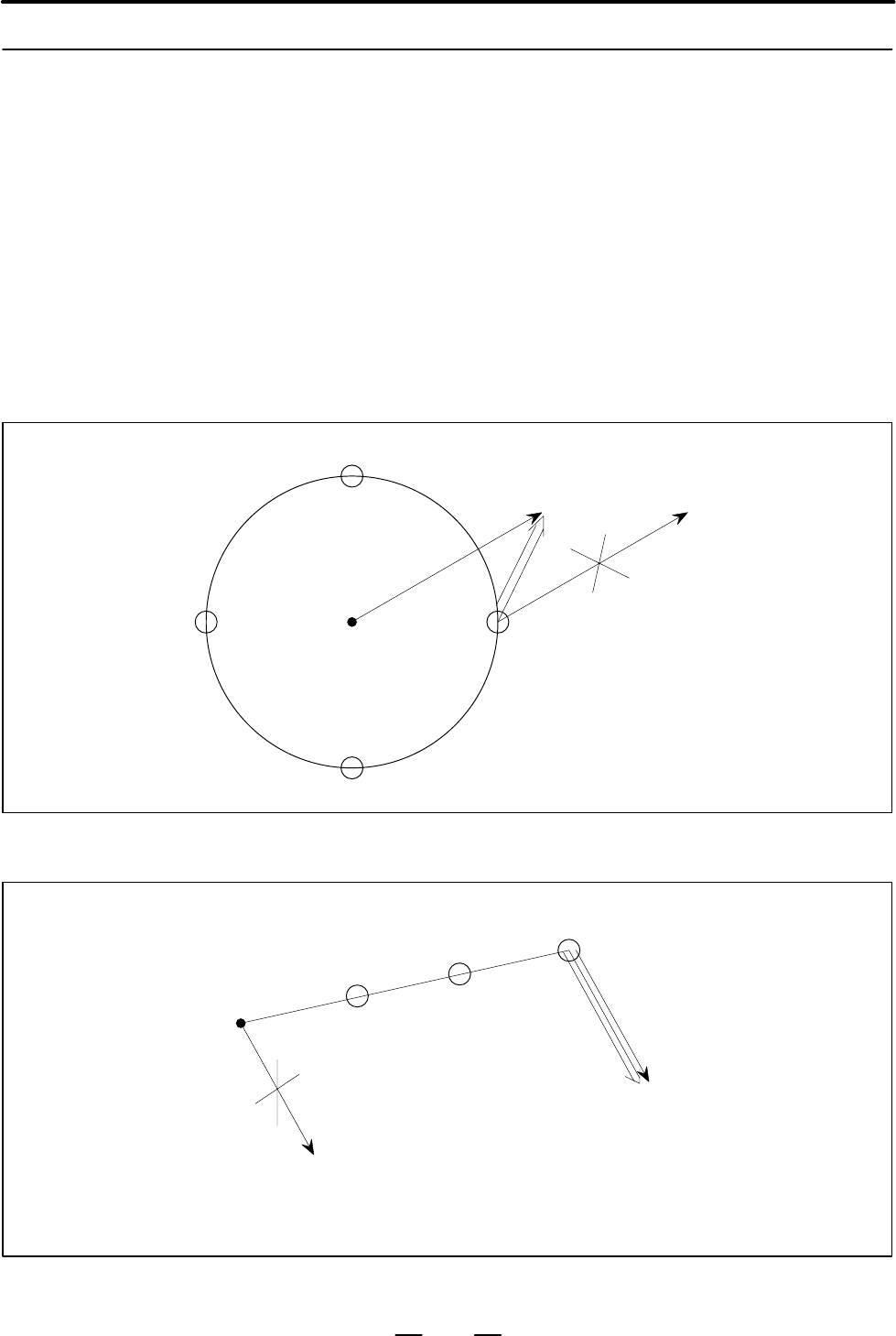

Fig.14.1.10 (a) Incremental command just after bolt hole circle (G26)

å Movement of tool

Start

point

#3 (End point)

Not incremental amount starting

with the base point (start point) of

pattern but incremental amount

starting with the end point.

Fig.14.1.10 (b) Incremental command just after line at angle (G76)

14.1.10

Incremental Command

Just After Pattern

Function
