Series 16i/18i/160i/180i - PB Operators manual Page 656

Operators manual

Page of 792

/ 792

OPERATION11. SETTING AND DISPLAYING DATA

B–63684EN/01

630

(2)Setting items from the MDI

1 Set the mode to MDI.

2 Press the

OFFSET

SETTING

function key. Then press the [SETING] soft key

to enable the parameter write operation. The CNC indicates alarm

No. 100.

3 Display the tool figure registration screen for drawing figures by

following the steps described in (1).

4 Move the cursor to an item to be changed.

Method 1

Move the cursor to the item to be changed with the page keys and

cursor keys.

Method 2

Change the mode of the soft keys to the operation selection mode

using the [(OPRT)] soft key. Enter the registration number of the

tool for which data is to be changed, then press the [NO.SRH] soft

key. Move the cursor to the item to be changed with the cursor

keys.

5 For absolute programming, enter the data and press the [INPUT]

soft key.

For incremental programming, enter an increment or decrement

and press the [+INPUT] soft key.

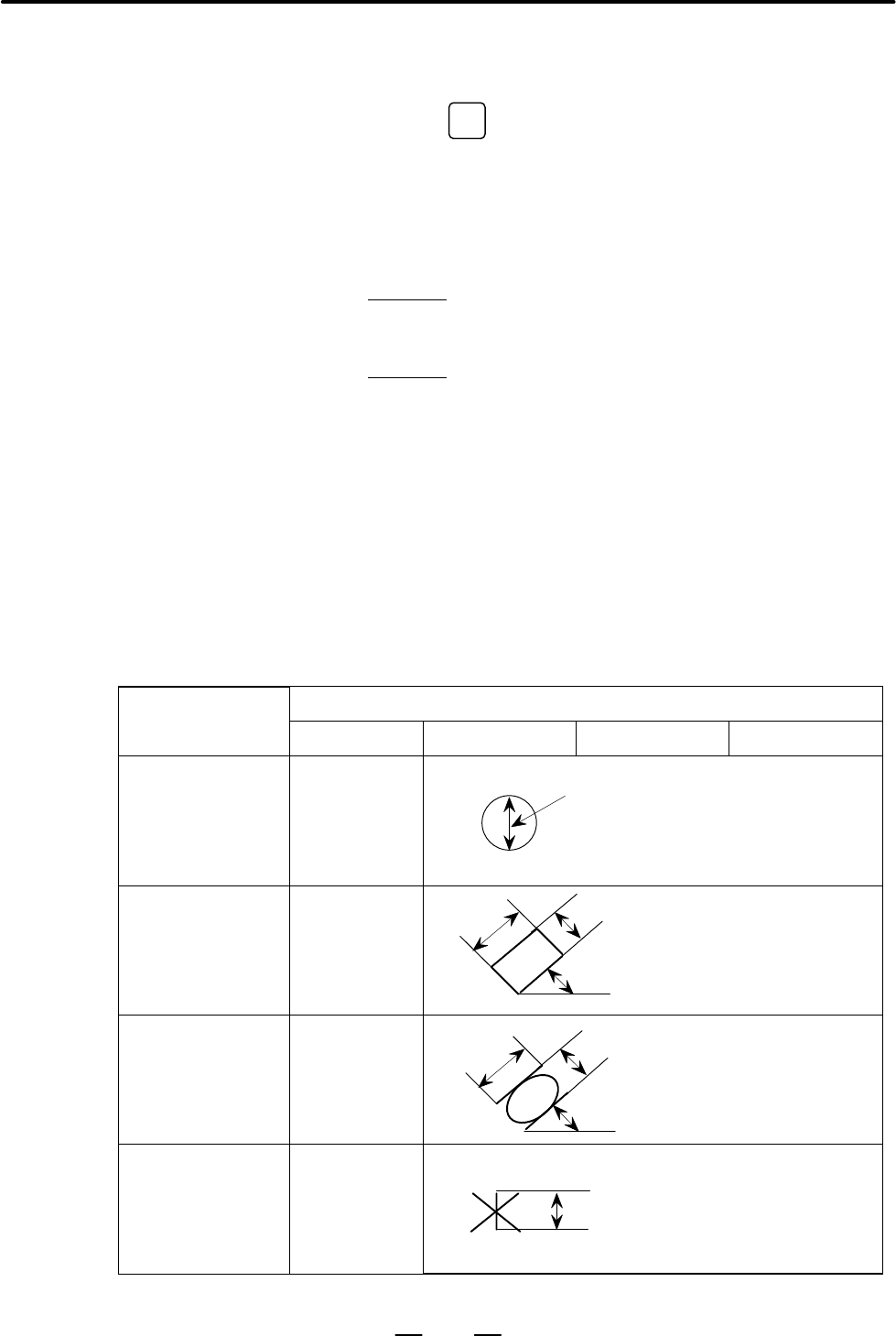

The following table shows tool figure data.

I = 25.4mm(1 inch)

Fixed

Figure

C I (Dimension X) J (Dimension Y) K (Angle)

Circle 01

Square, rectangle 02

Elongated hole 03

Others 00

I : 0 to 999999

(Input unit)

I : 0 to 999999

J : 0 to 999999

K : 0 to 359999

(Input unit)

I : 0 to 999999

J : 0 to 999999

K : 0 to 359999

(Input unit)

I : 25.4mm (1 inch)

Fixed value
