Series 16i/18i/160i/180i - PB Operators manual Page 471

Operators manual

Page of 792

/ 792

OPERATION

B–63684EN/01

5. TEST OPERATION

445

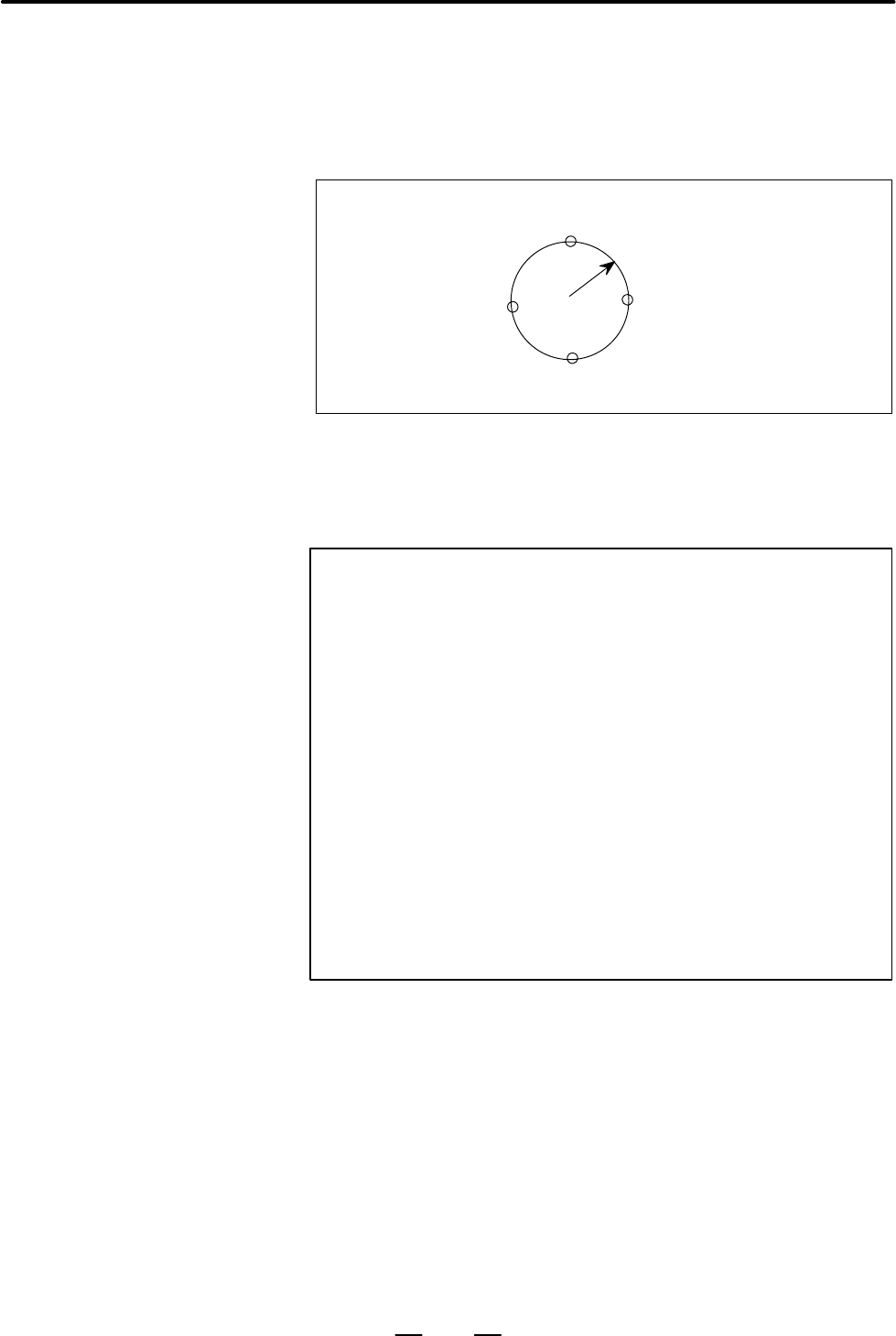

Example) G26I100.0J0K4 ;









100R

When single block stop has been made in , , , the feed hold

lamp lights.

When single block stop has been made in , the feed hold lamp does

not light.

WARNING

1 If a pattern function (G26, G76, G77, G78, G79) is executed

by the single block operation, the single block stop is made

after each positioning and punching to respective punch

points.

The feed hold lamp lights except when the single block stop

is made at the last punch point.

2 If nibbling function (G68, G69) is executed by the single

block operation, the single block stop is made after

punching to the last punch point.

In nibbling is executed by M function, the single block stop

is made after executing from the block including the M code

for nibbling mode to the block including the M code for

nibbling mode cancel.

3 If automatic repositioning (G75) is executed by the single

block operation, the single block stop is made after a series

of motions for the repositioning has been fully completed.

Single block stop is not performed in a block containing M98P_;. M99;

or G65.

However, single block stop is even performed in a block with M98P_ or

M99 command, if the block contains an address other than O, N or P.

Explanation

D Single block during a

pattern function

D Subprogram call and

single block
