16. CUSTOM MACRO

291

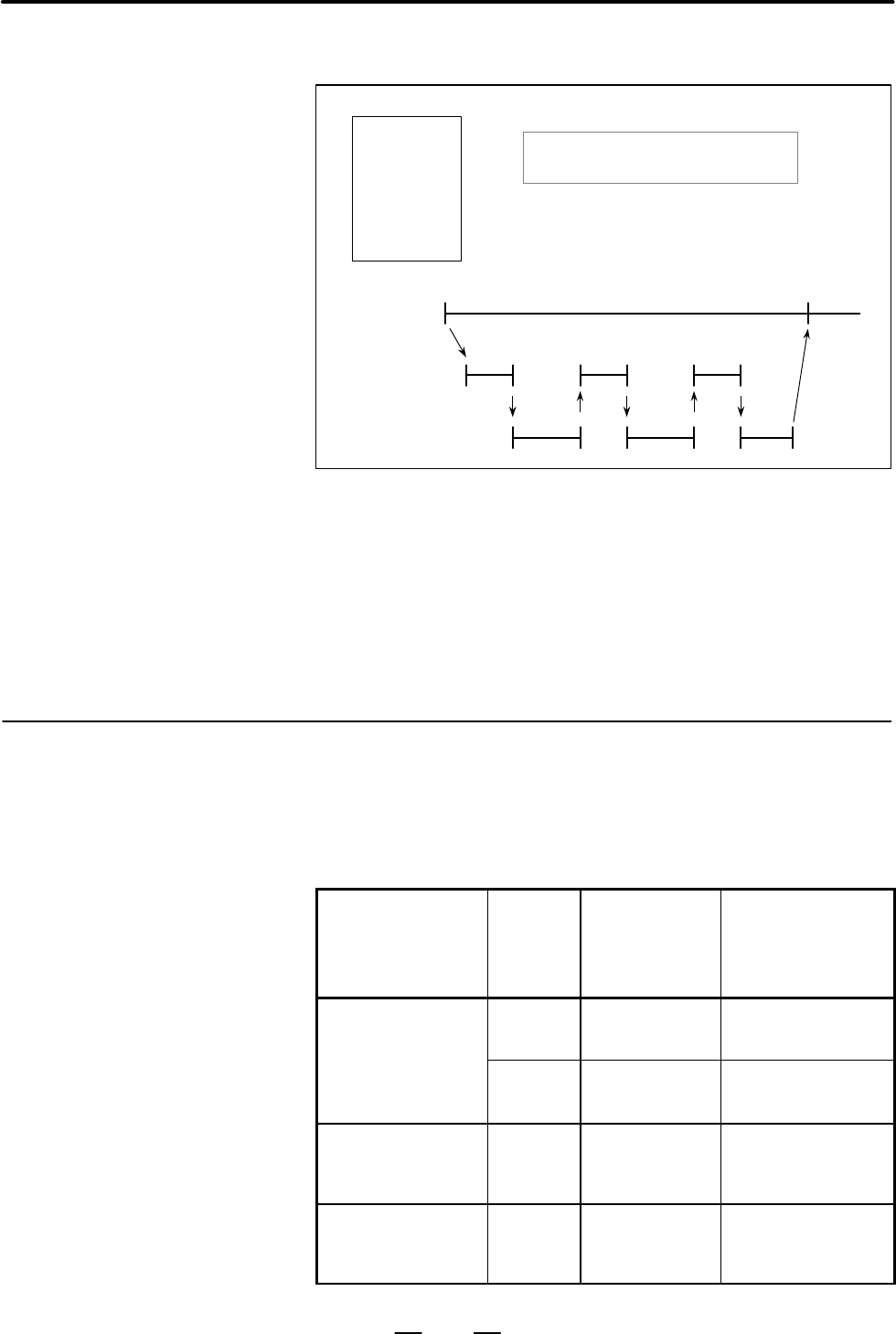

N1 G01 G41 X100.0 G100 Dd ;

> : Block being executed

j : Blocks read into the buffer

N2 #1=100 ;

N3 Y100.0 ;

N4 #2=200 ;

N5 M08 ;

N6 #3=300 ;

N7 X200.0 ;

NC statement

execution

Macro statement

execution

Buffer

When the N1 is being executed, the NC statements in the next two blocks

(up to N5) are read into the buffer. Since N5 is a block that involves no

movement, an intersection cannot be calculated. In this case, the NC

statements in the next three blocks (up to N7) are read. The macro

statements (N2, N4, and N6) between N1 and N7 are processed during

execution of N1.

In case of using the following system variables in macro program and you

need to execute the macro program after completing the block execution

just before the macro program, M code which can prevent buffering

(parameter No.3411–3432) or G53 command block is necessary just

before the macro program.

Meaning

Read

Write

Number of

Variable

Note

(In case not to

command M code

preventing buffer-

ing or G53 block.)

Interface signals Read #1000 – #1015 ,

#1032

The data is read at

buffering a macro pro-

gram.

Write #1100 – #1115 ,

#1132

The data is written at

buffering a macro pro-

gram.

Macro alarms Write #3000 Macro alarm is gener-

ated at maximum 2

blocks before a macro

program.

Program stop with

message

Write #3006 Program stops at

maximum 2 blocks

before a macro pro-

gram.

D When the next block

involves no movement in

cutter compensation C

(G41, G42) mode

16.7.2

Caution for Using

System Variables
