OPERATION

B–63684EN/01

13. HELP FUNCTION

677

The current page No. is shown at the upper right corner on the screen.

Fig.13(j) PARAMETER TABLE screen

HELP (PARAMETER TABLE) 01234 N00001

1/4

* SETTEING (No. 0000∼)

* READER/PUNCHER INTERFACE (No. 0100∼)

* AXIS CONTROL

/SETTING UNIT (No. 1000∼)

* COORDINATE SYSTEM (No. 1200∼)

* STROKE LIMIT (No. 1300∼)

* FEED RATE (No. 1400∼)

* ACCEL/DECELERATION CTRL (No. 1600∼)

* SERVORELATED (No. 1800∼)

* DI/DO (No. 3000∼)

>_ S 0 T0000

MEM **** *** *** 10:12:25

[ ALM ] [ OPR ] [ PARA ] [ ] [ ]

7 To exit from the help screen, press the

HELP

key or another function

key.

[ALAM]

ALARM

DETAIL screen

OPERATION

METHOD

screen

PARAMETER

TABLE screen

[OPR] [PARA]

key

CNC

screen

Each opera-

tion instruc-

tion screen

[OPR]

(NO.)+[SELECT]

key

function key

HELP

INITIAL MENU

screen

HELP

key

function key

HELP

PAGE key

key

function key

HELP

(NO.)+[SELECT]

Explanation

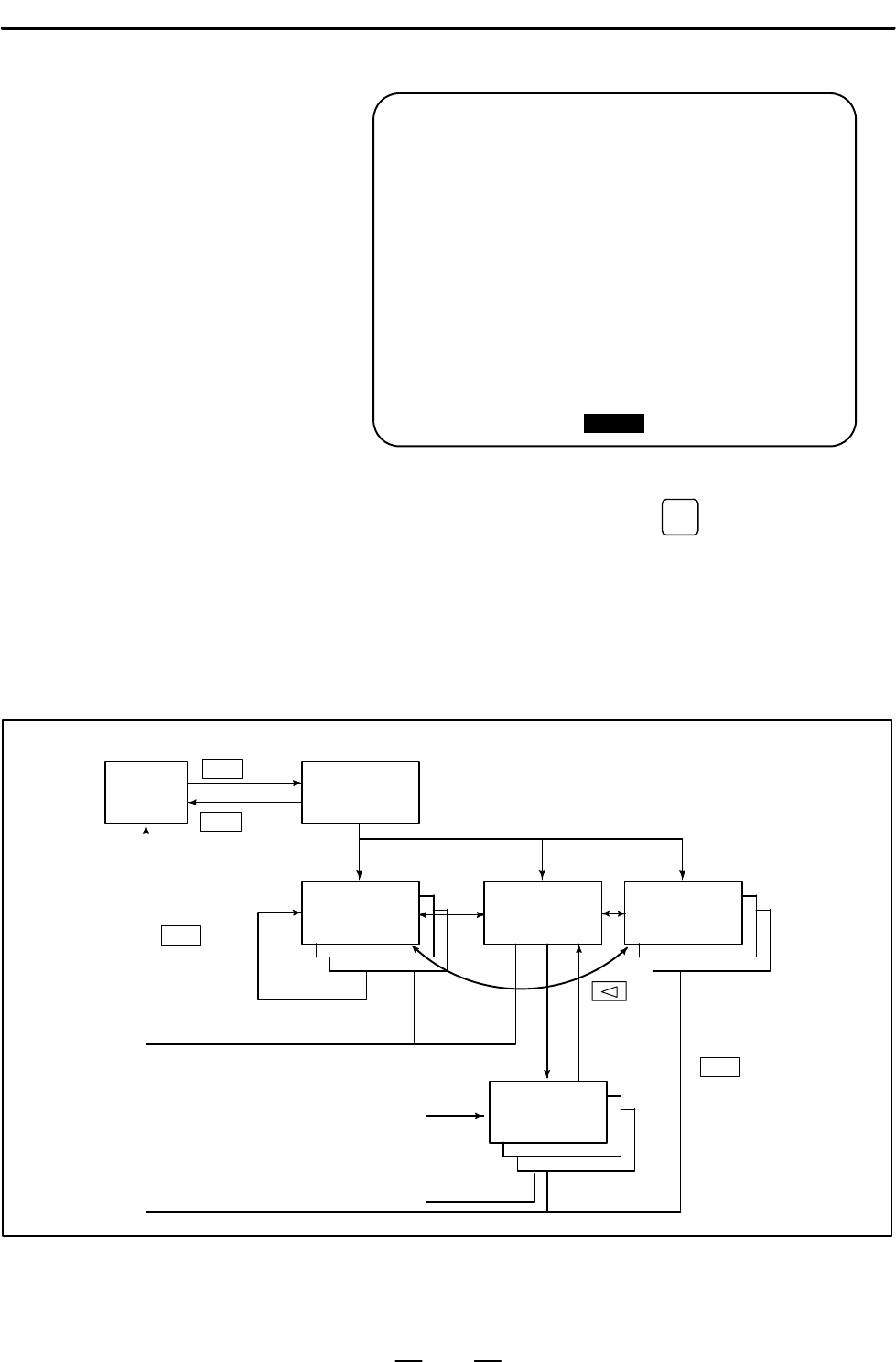

D Configuration of the Help

Screen
