Series 16i/18i/160i/180i - PB Operators manual Page 75

Operators manual

Page of 792

/ 792

PROGRAMMING

B–63684EN/01

5. FEED FUNCTIONS

Feedrate of linear interpolation (G01), circular interpolation (G02, G03),

etc. are commanded with numbers after the F code.

In cutting feed, the next block is executed so that the feedrate change from

the previous block is minimized.

Feed per minute

F_ ; Feedrate command (mm/min or inch/min)

Cutting feed is controlled so that the tangential feedrate is always set at

a specified feedrate.

End point

Starting

point

Center

End point

Start

point

Linear interpolation

Circular interpolation

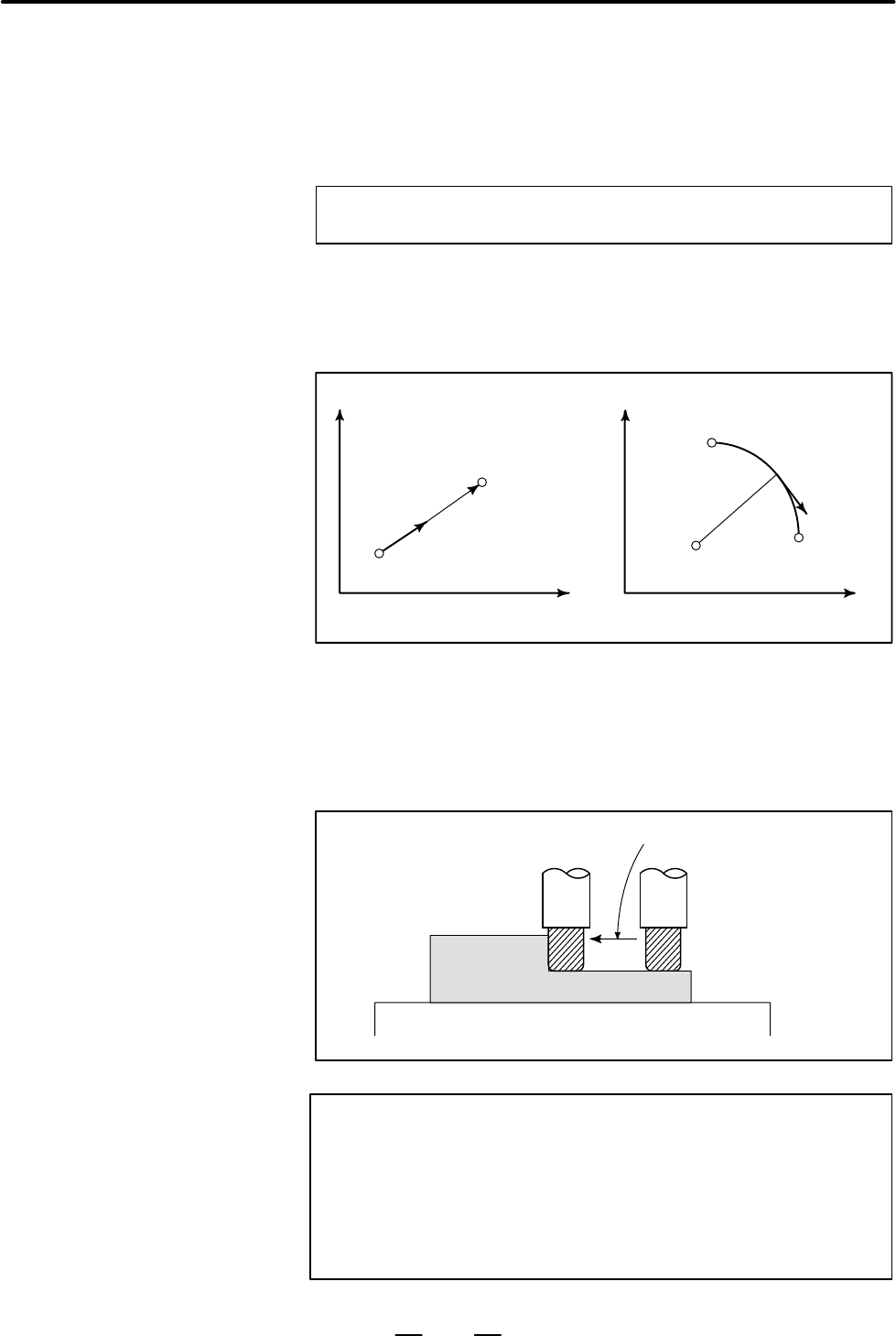

Fig. 5.3 (a) Tangential feedrate (F)

The amount of feed of the tool per minute is to be directly specified by

setting a number after F.

An override from 0% to 254% (in 1% steps) can be applied to feed per

minute with the switch on the machine operator’s panel. For detailed

information, see the appropriate manual of the machine tool builder.

Workpiece

Table

Tool

Feed amount per minute

(mm/min or inch/min)

Fig. 5.3 (b) Feed per minute

WARNING

Cutting feed is invalid for the turret axis (T–axis) and C–axis.

T–axis and C–axis commands, therefore, cannot be

specified in linear interpolation (G01) mode and circular

interpolation (G02, G03) mode.

However, when the parameter CIP (No.16360#5) is set to

1, C–axis can be specified.

5.3

CUTTING FEED

Format

Explanations

D Tangential speed

constant control

D Feed per minute
