OPERATION1. GENERAL

B–63684EN/01

334

Automatic operation is to operate the machine according to the created

program. It includes memory and MDI operations. (See Section III–4).

Program

Tool

01000 ;

M_S_T ;

G92_X_;

G00... ;

G01...... ;

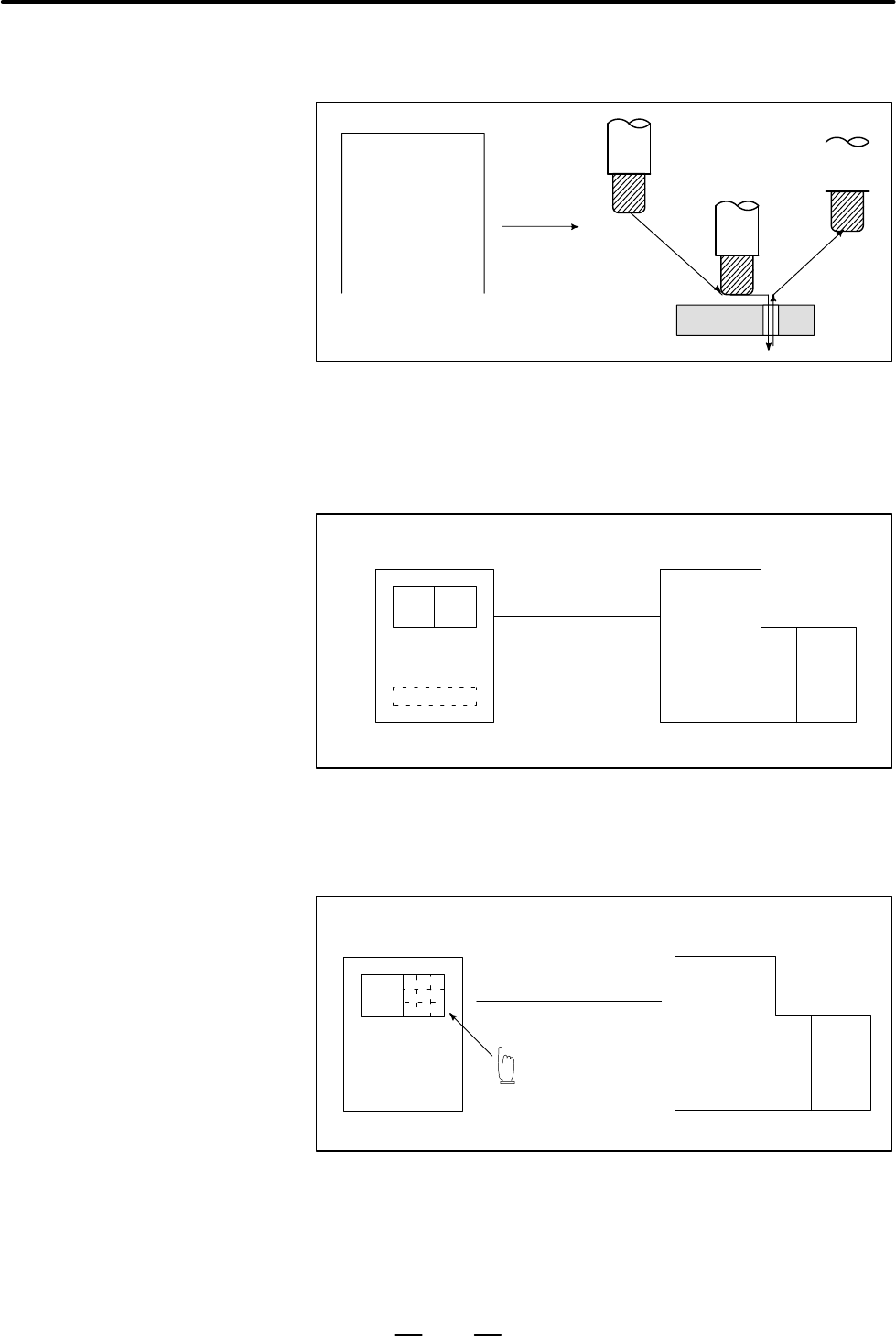

Fig.1.2 (a) Tool movement by programming

After the program is once registered in memory of CNC, the machine can

be run according to the program instructions. This operation is called

memory operation.

CNC

Machine

Memory

Fig.1.2 (b) Memory operation

After the program is entered, as an command group, from the MDI

keyboard, the machine can be run according to the program. This

operation is called MDI operation.

CNC MDI keyboard

Manual program

input

Machine

Fig.1.2 (c) MDI operation

In this mode of operation, the program is not registered in the CNC

memory. It is read from the external input/output devices instead. This

is called DNC operation. This mode is useful when the program is too

large to fit the CNC memory.

1.2

TOOL MOVEMENT

BY PROGRAMING–

AUTOMATIC

OPERATION

Explanations

D Memory operation

D MDI operation

D DNC operation
