The positional relation between these two coordinate systems is

determined when a workpiece is set on the table.

The tool moves on the coordinate system specified by the CNC in

accordance with the command program generated with respect to the

coordinate system on the part drawing, and cuts a workpiece into a shape

on the drawing.

Therefore, in order to correctly cut the workpiece as specified on the

drawing, the two coordinate systems must be set at the same position.

When a workpiece is set on the table, these two coordinate systems lay

as follows:

The tool moves on the coordinate system specified by the CNC in

accordance with the command program generated with respect to the

coordinate system on the part drawing, and cut a workpiece into a shape

on the drawing.

Therefore, in order to correctly cut the workpiece as specified on the

drawing, the two coordinate systems must be set at the same position.

To set the two coordinate systems at the same position, when setting a

workpiece to be machined to general turret punch press, the workpiece is

held by the workpiece holders after positioning it by applying the end face

of the workpiece to the end locator and workpiece holders mounted on the

machine as illustrated below.

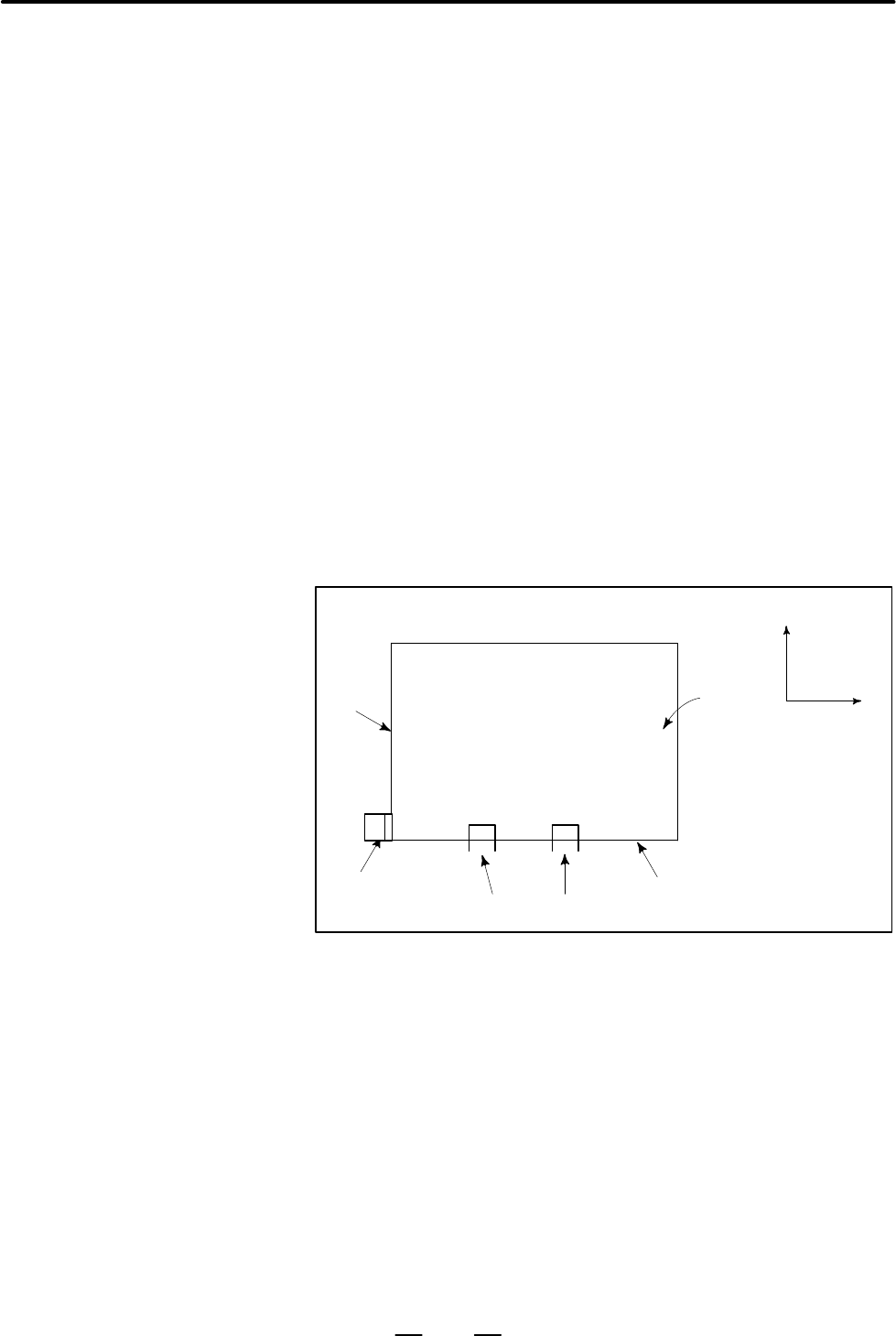

Workpiece

End locator

Workpiece holder

Face A

Face B

Generally, the distance between the reference point and the and locator as

well as the distance between the reference point and the workpiece holders

are intrinsically determined according to machines, and they are separated

from each other by a fixed distance.

D Methods of setting the

two coordinate systems

in the same position
