A programmed shape can be rotated. By using this function it becomes

possible, for example, to modify a program using a rotation command

when a workpiece has been placed with some angle rotated from the

programmed position on the machine.Further, when there is a pattern

comprising some identical shapes in the positions rotated from a shape,

the time required for programming and the length of the program can be

reduced by preparing a subprogram of the shape and calling it after

rotation.

Angle of rotation

Center of rotation

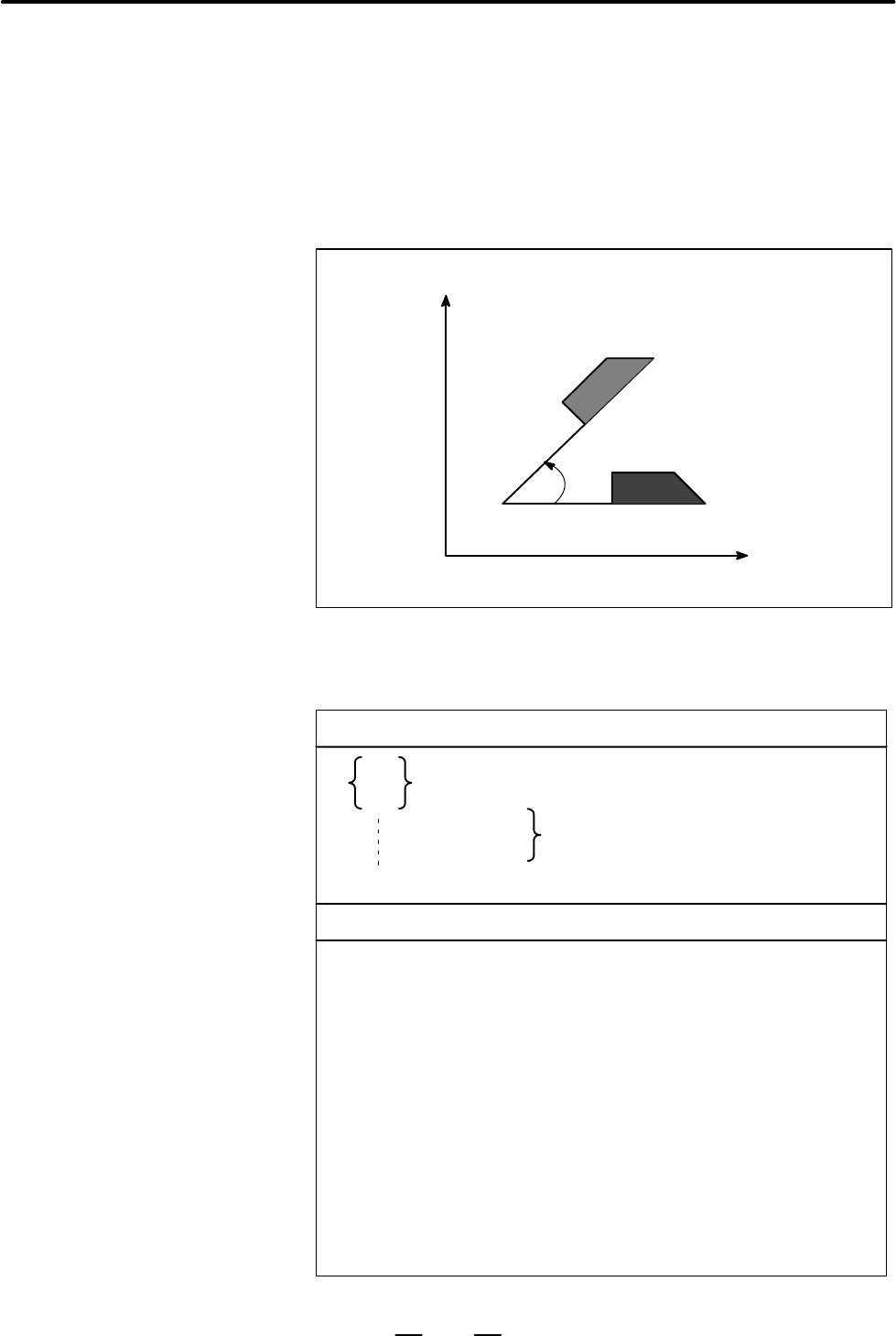

Fig15.5 (a) Coordinate system rotation

G84 α_β_R_ ; Start rotation of a coordinate system.

G17 (G18 or G19) : Select the plane in which contains the figure to be

rotated.

α_β_ Absolute command for two of the x_,y_,and Z_ axes that

correspond to the current plane selected by a

command (G17, G18, or G19). The command specifies

the coordinates of the center of rotation for the values

specified subsequent to G84.

R_ Angular displacement with a positive value indicates

counter clockwise rotation. Bit 0 of parameter 5400

selects whether the specified angular displacement is

alwarys considered an absolute value or is considered an absolute or in-

cremental value depending on the specified

G code (G90 or G91).

Least input increment: 0.001 deg

Valid data range : –360,000 to 360,000

Coordinate system rotation mode

(The coordinate system is rotated.)

G85 ; Coordinate system rotation cancel command

Format

Meaning of command

G17

G18

G19

15.5

COORDINATE

SYSTEM ROTATION

(G84, G85)
