2.SPECIFICATIONS SPECIFICATIONS B-65222EN/03
- 34 -
For 900D/4 (A06B-0423-K003)

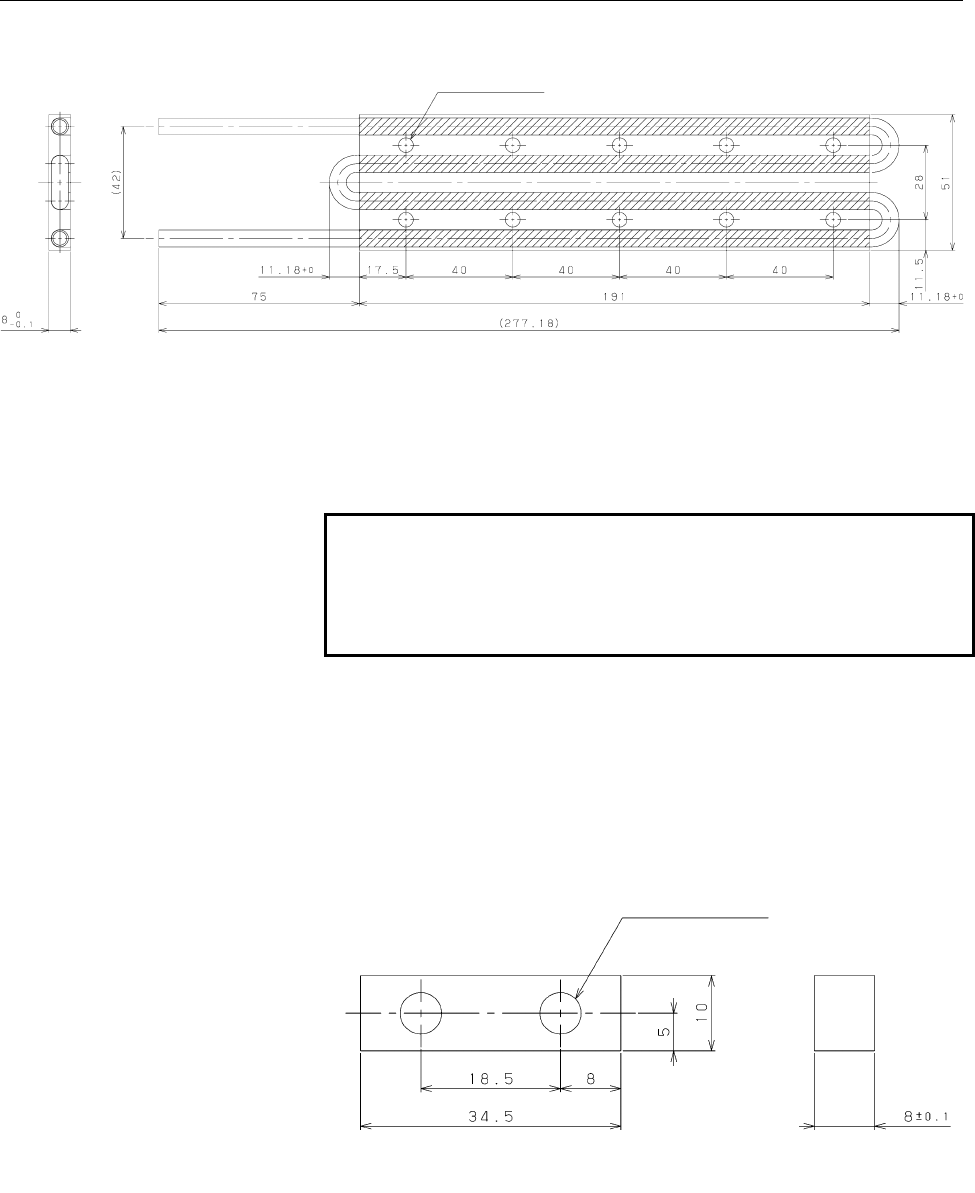

10 - 5.5-DIA THROUGH
Material:
Plate: Aluminum
Tube: Deoxidized copper phosphorus seamless tube. Outside
diameter: 6.35 mm (1/4 inches) Wall thickness: 0.6 mm
Mass: 0.25 kg
NOTE
This cooling plate is dedicated to the 900D/4. It
cannot be used for other models. For installation of a
cooling plate, see Part III, "HANDLING, DESIGN, and
INSTALLATION."
- Spacer (common to the A06B-0423-K001, A06B-0423-K002, and A06B-0423-K003)
A cooling plate is supplied with two spacers of this type. To use a
magnetic pole sensor (that is, to use an incremental linear encoder) for
the 300D/4, 600D/4, or 900D/4, mount these spacers on the magnetic
pole sensor. They are not used when an absolute linear encoder is
used. For details, see Part III, "HANDLING, DESIGN, and
INSTALLATION."
2 - 5.5-DIA THROUGH
MATERIAL : ALMINIUM
