Linear Motor Series Descriptions Page 58

Descriptions
B-65222EN/03 SPECIFICATIONS 2.SPECIFICATIONS
- 37 -

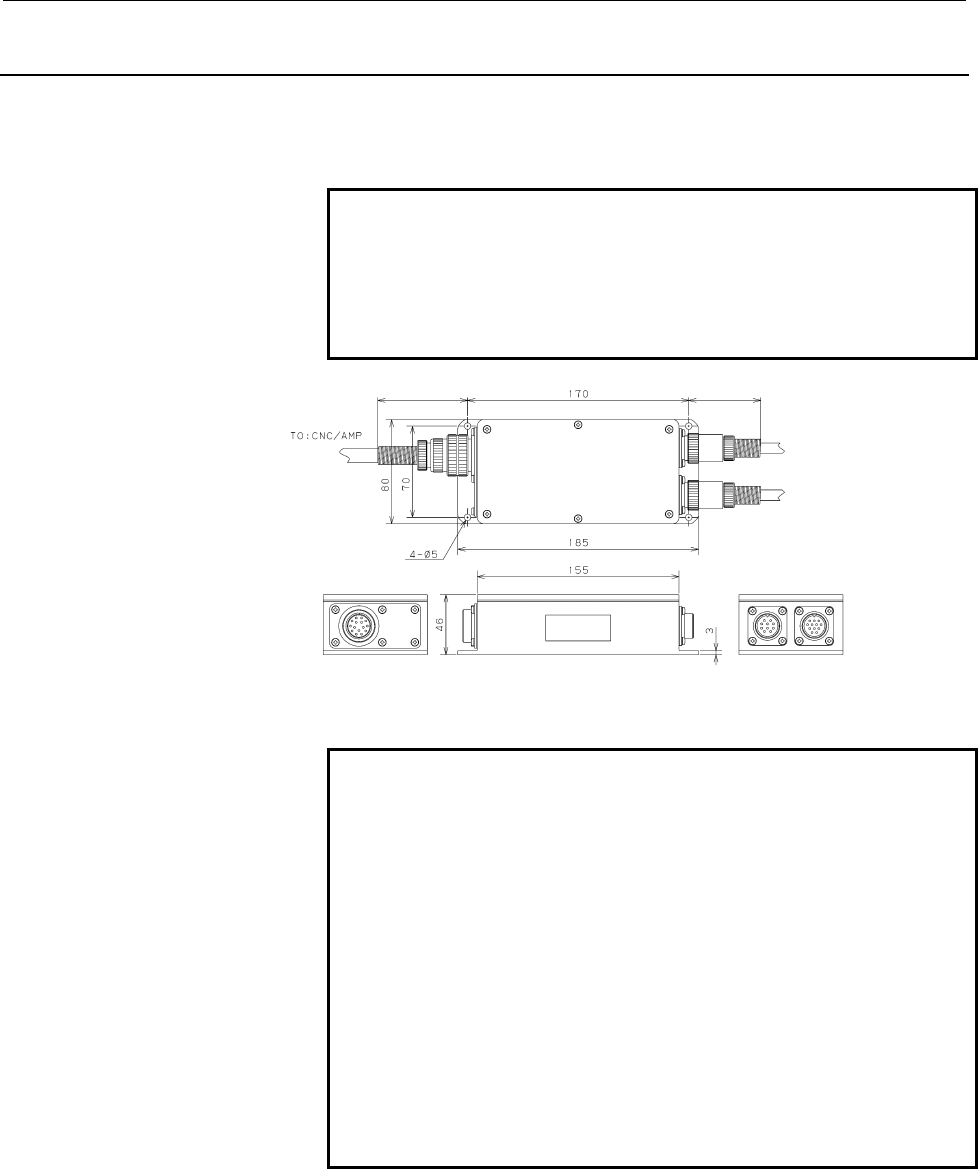

2.4.5 Position Detection Circuit
One-output type (A860-0333-T001)
Two-output type (A860-0333-T002)
NOTE
To use an incremental linear encoder, a position
detection circuit is required. A magnetic pole sensor
described in the previous subsection is also required.
When an absolute linear encoder is used, neither is
required.
TO : MAGNETIC POLE SENSOR
A
PPROX.70
A
PPROX.56
TO : LINEAR ENCODER
Mass: 0.7 kg (body only, not including the cable)
NOTE
1 Use the one-output type (A860-0333-T001) in a
typical configuration. Use the two-output type (A860-
0333-T002) only when signals must branch off from
one linear encoder.
2 To connect the position detection circuit to a magnetic
pole sensor, prepare cable K4. The magnetic pole
sensor dedicated to the 300D/4, 600D/4, and 900D/4
is supplied with a cable.
3 For the cable between the linear encoder and position
detection circuit, contact the relevant linear encoder
manufacturer.
4 To connect the position detection circuit to a
CNC/amplifier, prepare cable K2.
5 For details of each cable, see Section 2.5, "CABLES."
