OPERATION

B–63864EN/03

12. GRAPHICS FUNCTION

653

6 Set the operation mode to the memory mode, press function key

PROG

, and call the part program which should be drawn.

7 Press function key

GRAPH

(

CUSTOM

GRAPH

for a small MDI) several times to

redisplay the PATH GRAPHIC (PARAMETER) screen, then press soft

key

[EXEC] to display the PATH GRAPHIC (EXECUTION) screen.

MEM

* * * *

* * * * * *

10 : 10 : 40

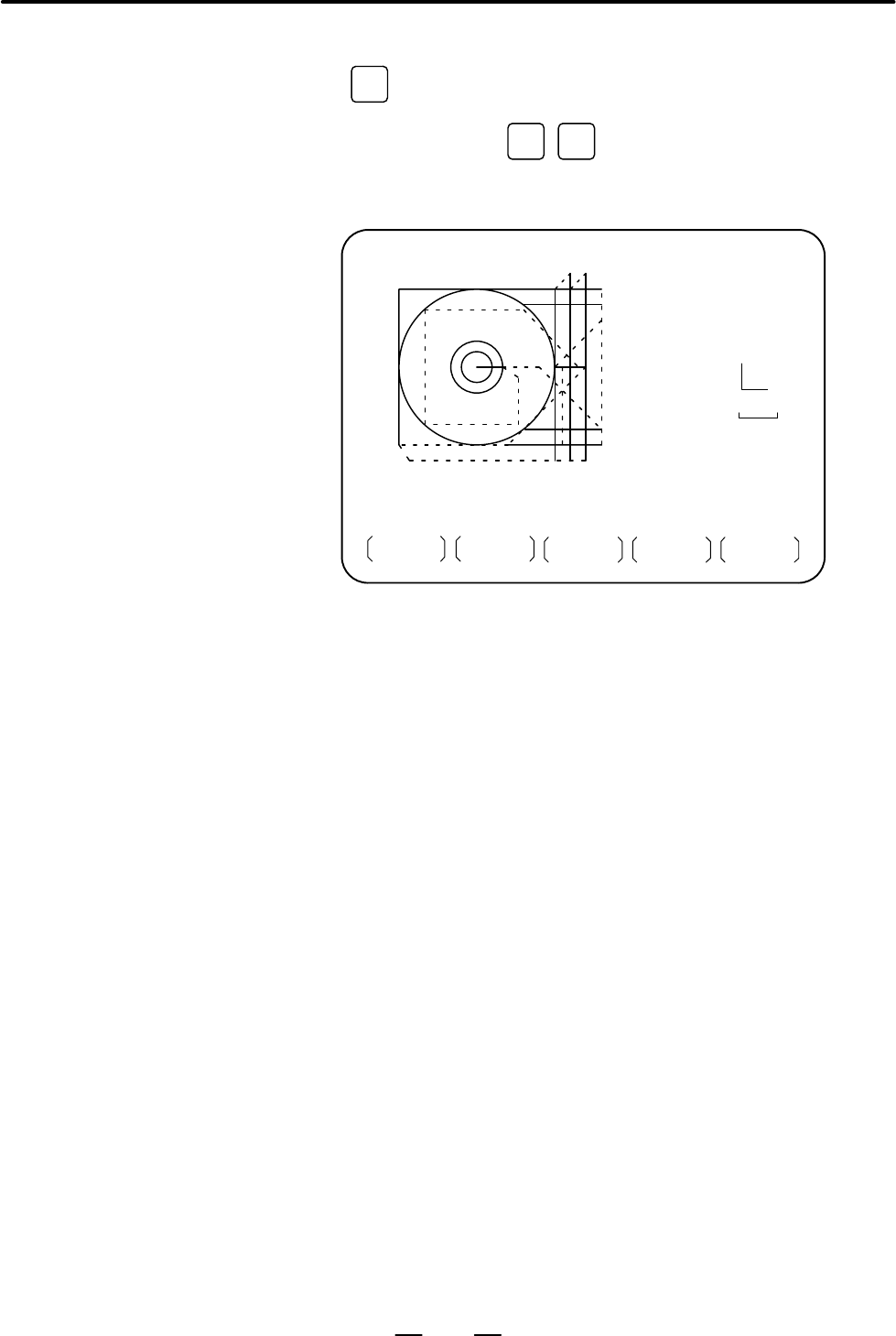

PATH GRAPHIC (EXECUTION)

O1126 N01126

25.8

ERASEAUTO

START

STOP REWIND

8 Press soft key [(OPRT)], then press soft key [AUTO] or [START].

Pressing

[AUTO] enables automatic scaling. See item 7 in

introduction of path drawing and the description of soft key

[AUTO]

in Explanations for details. Drawing is now started. During drawing,

the message ”

DRAWING” blinks at the lower–right corner of the CRT

screen.

9 Press soft key

[STOP] to pause drawing. The indication of “STOP”

blinks at the lower right corner on the CRT screen. Press soft key

[START] to start drawing. In addition, press soft key [REWIND] to

redraw from the top of program before pressing soft key

[START].

10 Execute the last of part program (M02/M30) to end drawing. This

will cause, blinking of the “

DRAWING” light to turn off. The tool

path view drawn can be retained until the power is turned off

unless a new tool path view is drawn.
