B-63864EN/03 MANUAL GUIDE 0i 1.MANUAL GUIDE 0i

- 677 -

When the user first enters the help topic, text-based information is

displayed. When the user presses the “GRAPH.” soft-key, any

graphical information for that topic is displayed. In this way, the user

can confirm that the selected topic pertains to the information that

they need.

NOTE

For some G-codes, there are no graphical help

screens. In these cases, no graphical help screen is

displayed when you press “GRAPH”.

The user can either return to the editor by pressing the Left Arrow

soft-key on the display unit, or directly enter the required information

into the help screen. To insert the program information into the help

screen, the user simply has to type in the command and press the

“INSERT” key on the MDI key panel. For our example, let’s set the

X- and Y-axes to 1.0. Since we have confirmed that the G92

command is, in fact, the command we want, we would type in

“G92X1.Y1.[EOB]” (where “EOB” is the End of Block key on the

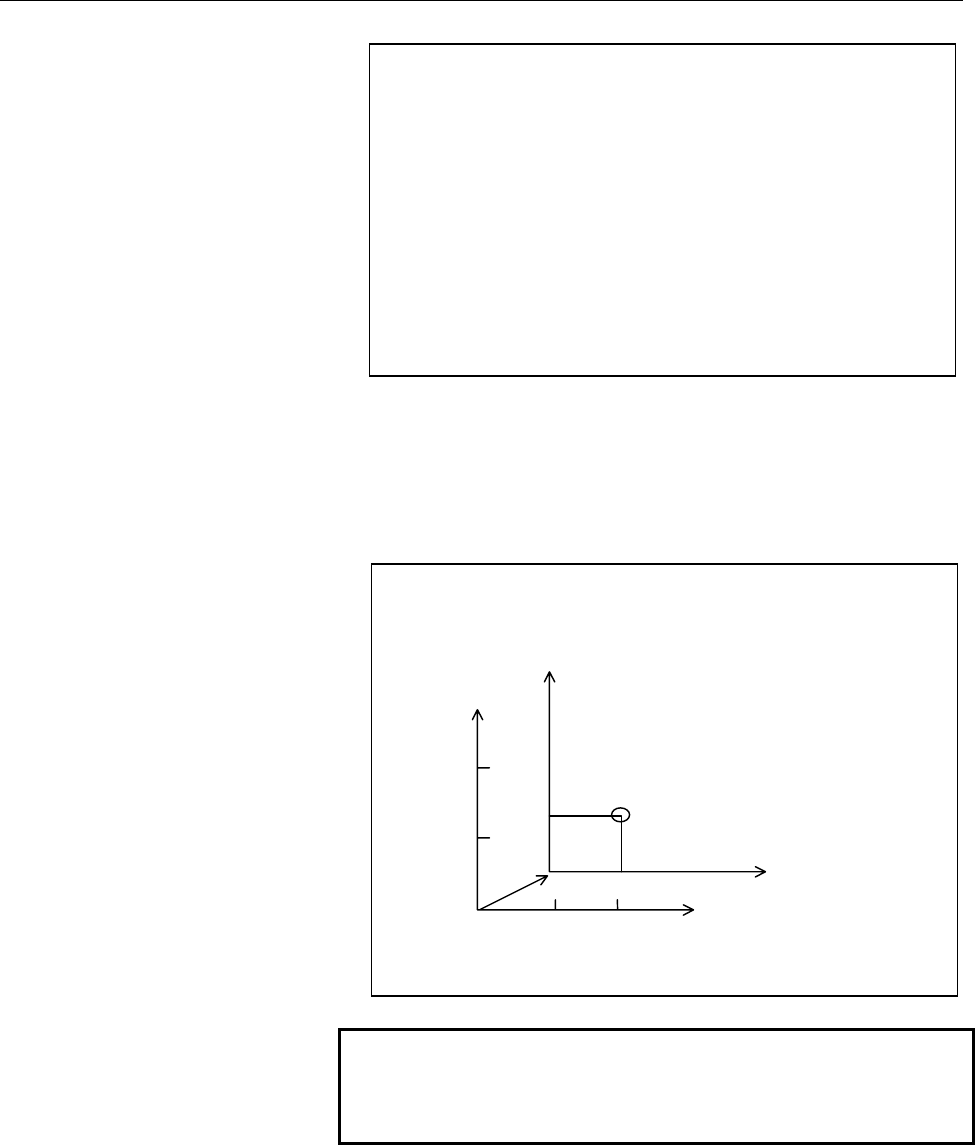

G92 SETTING WORK COORD. SYSTEM

By specifying G92 command, a workpiece

coordinate system (selected by G54 to

G59) is shifted to set a new workpiece

coordinate system origin. Then, the

workpiece zero point offset values.

This means that all the workpiece

coordinate systems are shifted by the

same amount.

[TEXT ][GRAPH. ][ ][ ][ ]

G92 SETTING WORK COORD. SYSTEM

G92X100Y100 offsets the G54 coords.

by vector A in X and Y axes.

[TEXT ][GRAPH. ][ ][ ][ ]

100 200

200

100

NEW ORIGIN

OLD ORIGIN

T POS

100
