B-66244EN/03 2.FANUC PICTURE (Windows)

- 101 -

Action Detail Properties

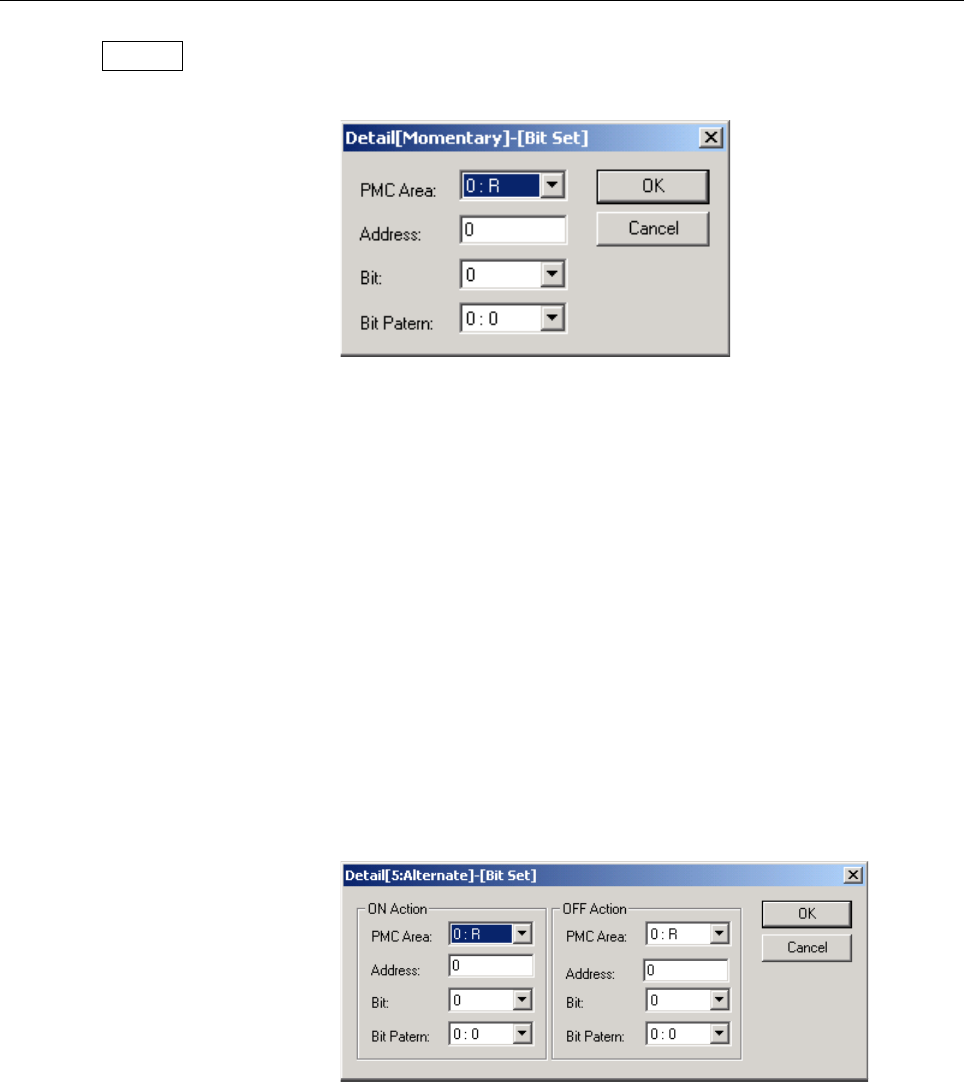

Detail[Momentary]-[Bit Set]

Specify which data to be output to which signal bit when the switch is

on.

PMC Area:

Specify a type of address for a PMC signal to be output. The

following areas can be specified:

R, D, K, X, Y, G, F, E(PMC-SB7)

Address:

Specify an output signal address.

Bit:

Specify the bit position of the signal above by using a number

from 0 to 7.

Bit Pattern:

[0:0] Outputs 0 (LOW) to a bit specified for output.

[1:1] Outputs 1 (HIGH) to a bit specified for output.

[2:Revers] Outputs a bit specified for output after reversion of

0/1.

Detail[5:Alternate]-[Bit Set]

[ON Action], [OFF Action]

Specify separately [ON Action] to be executed when the switch

makes a transition from OFF to ON, and [OFF Action] to be

executed when the switch makes a transition from ON to OFF.

PMC Area:

Specify a type of address for a PMC signal to be output. The

following areas can be specified:

R, D, K, X, Y, G, F, E(PMC-SB7)

Address:

Specify an output signal address.
