2.FANUC PICTURE (Windows) B-66244EN/03

- 166 -

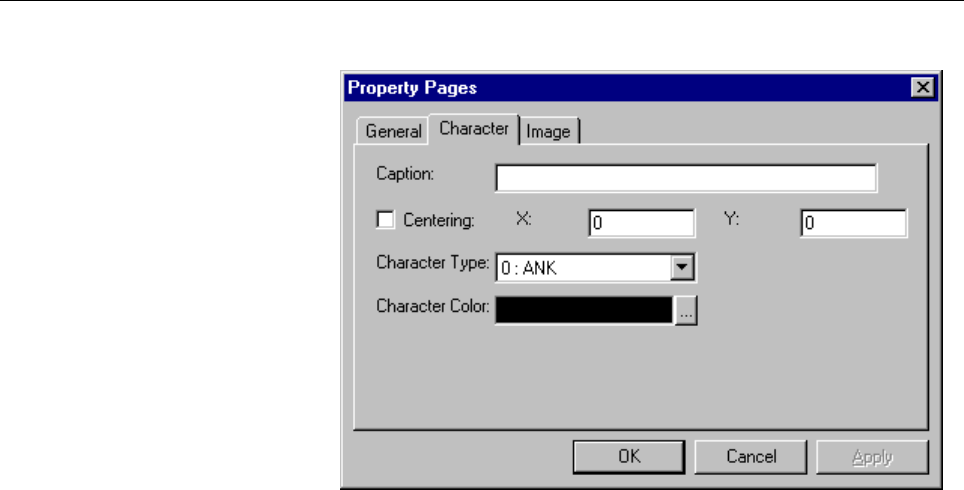

- Character

Caption:

Enter a character string to be displayed.

Centering:

Check this check box to center the caption display position

automatically in the vertical and horizontal directions within the

rectangle of the control.

X, Y:

Specify the caption display position by using relative coordinates

within the rectangle of the control. With the upper-left corner of

the rectangle of the control used as the reference, specify the

coordinates of the upper-left corner of the character string. If you

have checked the check box for automatic centering, coordinates

after automatic calculation are set.

Character Type:

Specify the type of character used for character string display.

0: ANK (displays a mixture of half-size and 2x-size characters)

1: X2 characters (Half-size characters set for a caption are

displayed as 2x characters.)

2: X4 (displays characters two times larger vertically and

horizontally)

3: X6 (displays characters two times larger vertically and three

times larger horizontally)

4: SMALL (displays characters smaller than half-size characters)

Note) Only the uppercase alphanumeric characters can be

displayed as 4x-size, 6x-size, or small characters.

Character Color:

Specify the color of a character string to be displayed.
