2.FANUC PICTURE (Windows) B-66244EN/03

- 56 -

- shortcut key property

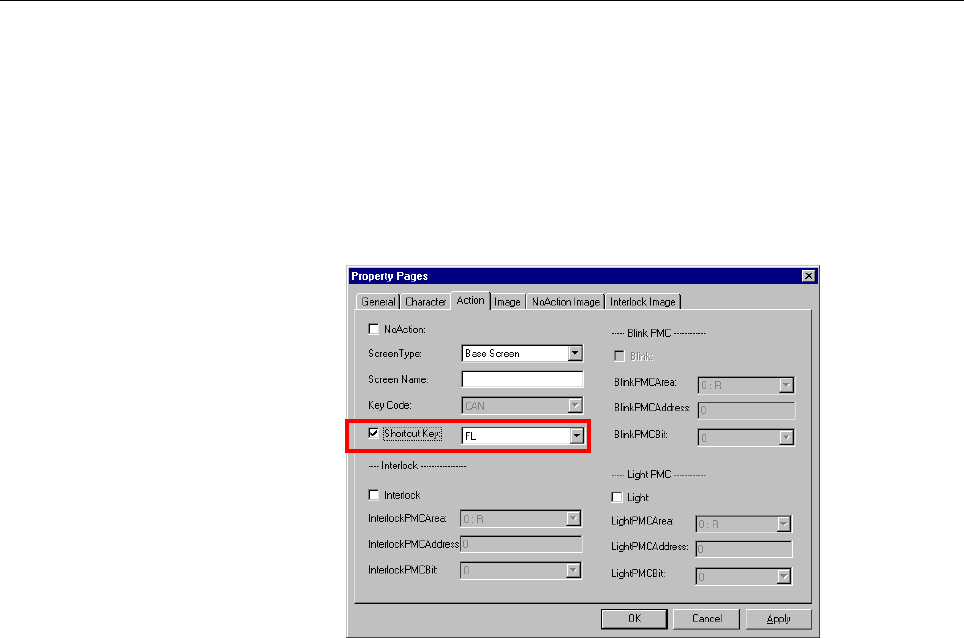

A “Shortcut key” property has been added to the Action tab for the

following button/switch controls.

Screen Switch control

Button Control

Framed Button Control

Shortcut key :

If you want to execute an operation set up on the Action tab by

pressing an associated shortcut key, turn on this check box.

An operation associated to the shortcut key setting can be

executed by pressing the key on the display unit, no matter

whether it has a touch panel, or touching the corresponding button

on the touch panel (if available).

The following key types can be selected:

1. Soft keys (FL, F1 - F9, and FR for 10 + 2 soft keys

FL, F1 - F5, and FR for 7 soft keys)

2. Cursor / Page key (←,→,↑,↓,Page-UP,Page-DOWN)

3. Edit key (CAN,INPUT,ALTER,INSERT,DELETE)

4. HELP key
