B-66244EN/03 2.FANUC PICTURE (Windows)

- 207 -

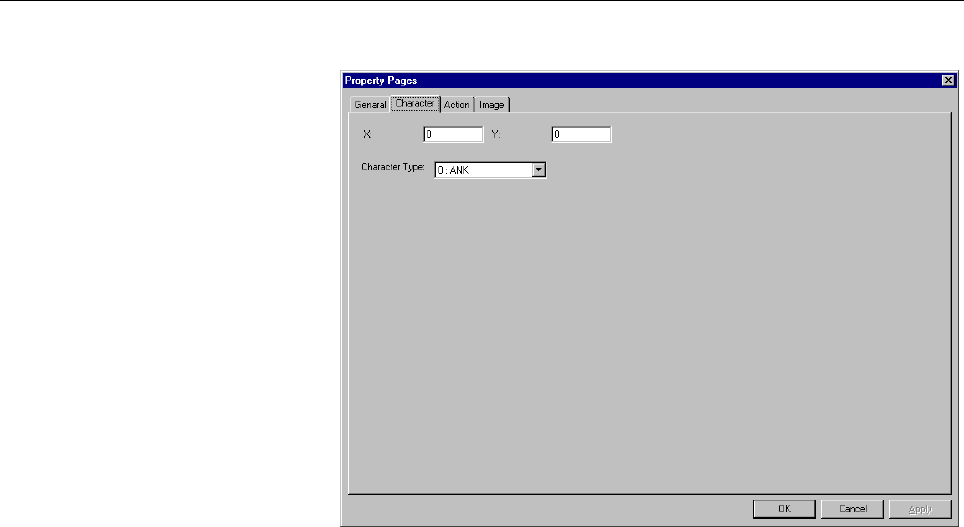

- Character

X,Y:

Specify the character string display position by using relative

coordinates within the rectangle of the control. With the

upper-left corner of the rectangle of the control used as the

reference, specify the coordinates of the upper-left corner of the

character string.

Character Type:

Specify the type of character used for character string indication.

0: ANK (displays a mixture of half-size and 2x-size characters)

1: X2 (Half-size characters set for a caption are displayed as 2x

characters.)

2: X4 (displays characters two times larger vertically and

horizontally)

3: X6 (displays characters two times larger vertically and three

times larger horizontally)

4: SMALL (displays characters smaller than half-size

characters)

* Only the uppercase alphanumeric characters can be

displayed as 4x-size, 6x-size or small characters.
