2.FANUC PICTURE (Windows) B-66244EN/03

- 48 -

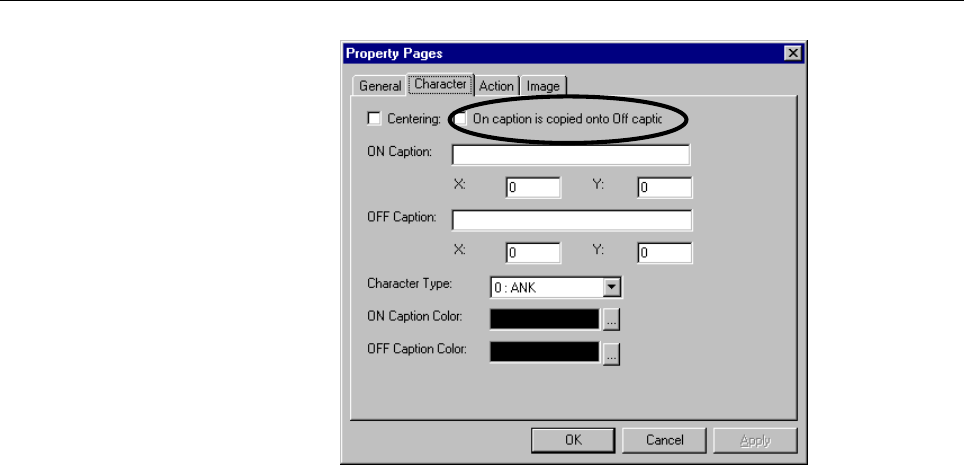

- On Caption is copied onto to Off Caption

The following controls, which have both On and Off captions, have a

caption copy check box:

Screen switch control

Lamp control

Button control

Framed button control

Checking this check box causes the On caption settings to be

automatically copied as the Off caption settings.

- Optional new line mark of caption

New line can be described by "\n".

- Character Type

0: ANK (displays a mixture of half-size and 2x-size characters)

1: X2 (Half-size characters set for a caption are displayed as 2x

characters.)

2: X4 (displays characters two times larger vertically and

horizontally)

3: X6 (displays characters two times larger vertically and three times

larger horizontally)

4: SMALL (displays characters smaller than half-size characters)

Only the uppercase alphanumeric characters can be displayed as

4x-size, 6x-size, or small characters.

The table below indicates the display sizes used when seven soft keys

are used and when twelve soft keys are used (including a case where a

touch panel is provided).
