FANUC PICTURE for Windows Operators manual Page 188

Operators manual
2.FANUC PICTURE (Windows) B-66244EN/03
- 178 -

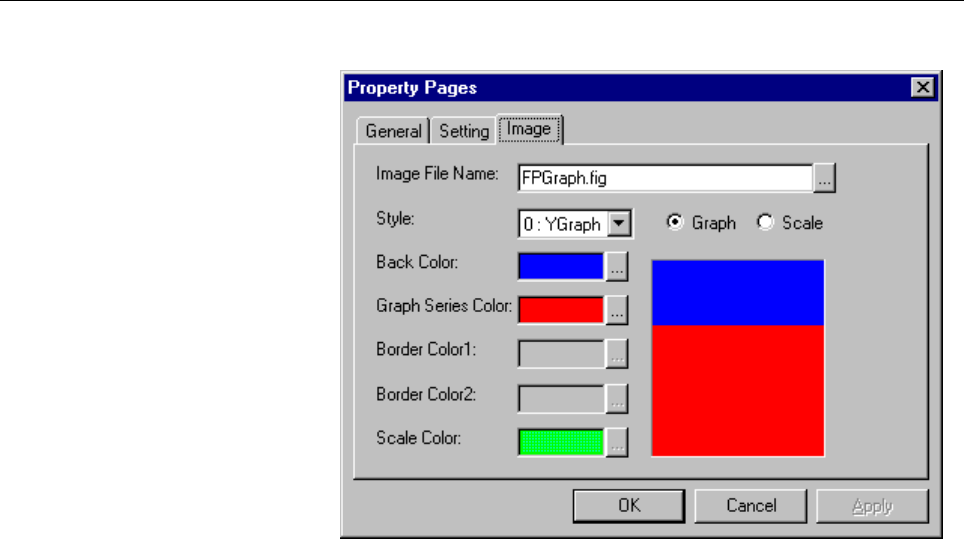

- Image
Image File Name:
The FIG file holding graph control figures can be selected.
Graph and Scale radio buttons:
Check Graph to select a bar graph figure.
Check Scale to select a coordinate axis (scale) figure to be used as
the background of a bar graph.
Style:
Select a type of graph figure registered in Image File Name.
Back Color:
Graph: Specifies the background color of a bar graph.
Scale: Specifies the background color of a coordinate axis figure.
Graph Series Color: To be set only when Graph is selected
Specify the data value display color of a bar graph.
Border Color 1: To be set only when Scale is selected
Select a frame color for the upper edge and left edge of a
coordinate axis figure.
Border Color 2: To be set only when Scale is selected
Select a frame color for the lower edge and right edge of a
coordinate axis figure.
Scale Color: To be set only when Scale is selected
Select an axis color for a coordinate axis figure.
