B-66244EN/03 2.FANUC PICTURE (Windows)

- 119 -

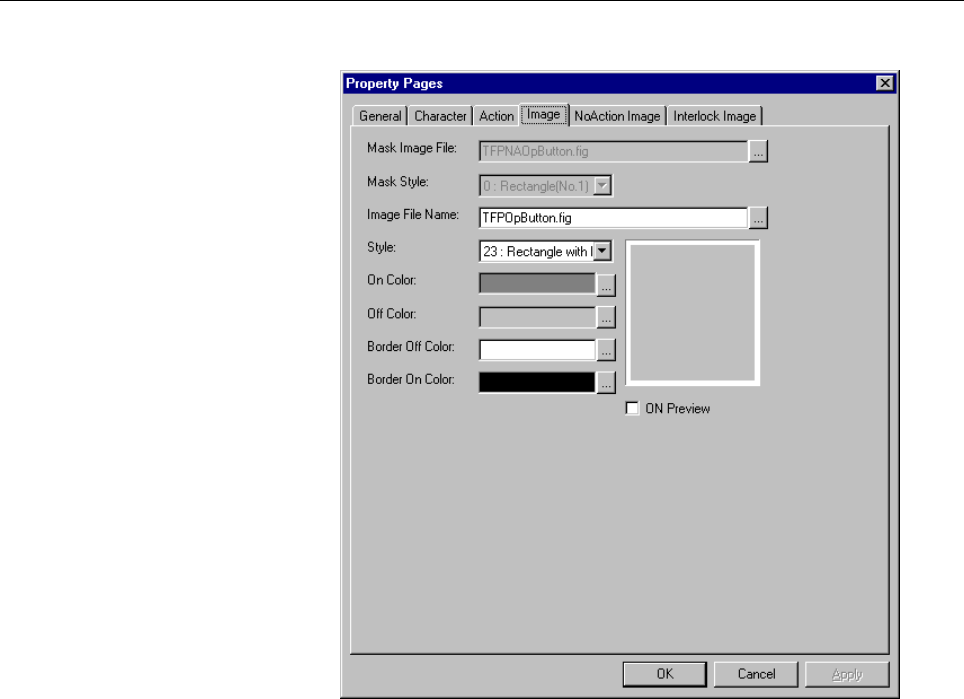

- Image

Mask Image File:

The FIG file holding the button figures to be used when the No

Action check box in the Action tab is checked can be selected.

Mask Style:

Select a type of button figure registered in Mask Image File.

Image File Name:

The FIG file holding the button figures to be used when the No

Action check box in the Action tab is not checked (that is, when

the function is enabled) can be selected.

Style:

Select a type of button figure registered in Image File Name.

Example: Specify No. 23 to select a push-button with a frame.

On Color:

Select a color to be used for the light section when the light section

is turned on.

Off Color:

Select a color to be used for the light section when the light section

is turned off.

Border Off Color:

For a framed figure button, select a button frame OFF color. For

other types of buttons, select a frame color for the upper edge and

left edge.

Border On Color:

For a framed figure button, select a button frame ON color. For

other types of buttons, select a frame color for the lower edge and

right edge.
