B-66244EN/03 2.FANUC PICTURE (Windows)

- 123 -

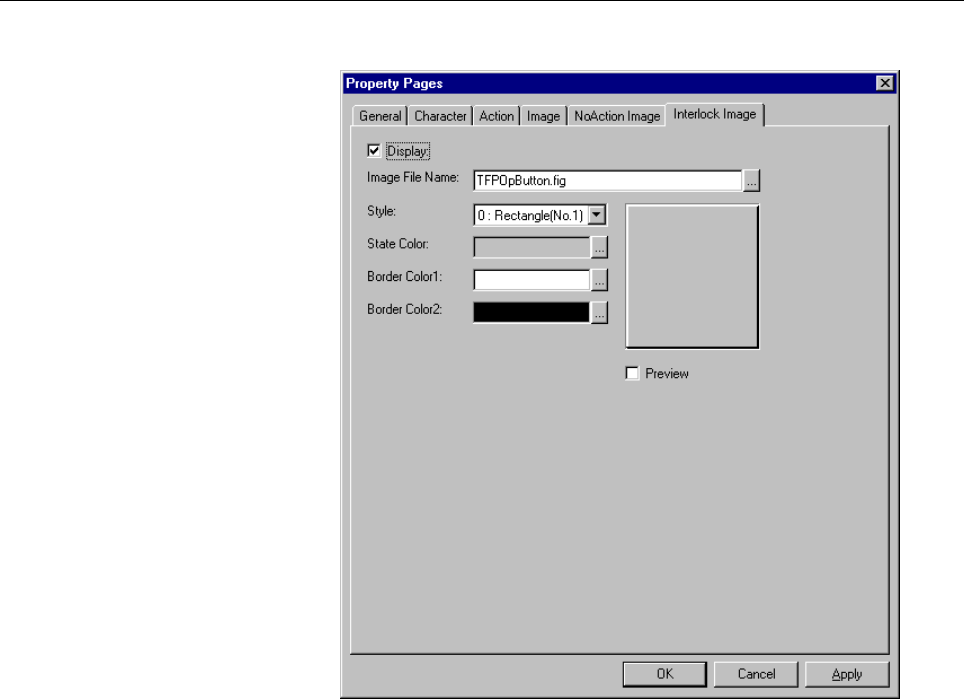

- Interlock Image

This tag is valid when [Interlock1] on the [Action] tag is checked.

Display:

Check this check box to change the style indication of an

interlocked button.

When [Interlock Signal] on the [Action] tag is set to ON, the

function of the bordered button control can be disabled and the

button style can be switched to the one that indicates the

interlocking state.

When this check box is checked, the following boxes can be set.

Image File Name:

This box can be used to select the FIG file that contains the

embedded plug styles used when the bordered button control is in

the stop state.

Style:

Select the type of the button styles registered in the file specified

in [Image File Name].

State Color:

Select the color of the indicator lamp section.

Border Color1:

Select the color of the upper and left ends of the button.

Border Color2:

Select the color of the lower and right ends of the button.
