2.2.6 Make MEM

This step converts data to display a created machine operation screen

with FANUC PICTURE(Windows) on the CNC and creates an MEM

file to be written to the F-ROM of the CNC.

Using the procedure below, convert FANUC PICTURE screen data

created using Edit Project and create data in memory card format.

(1) Data conversion and MEM form file making procedure

<1> Click the Make MEM button.

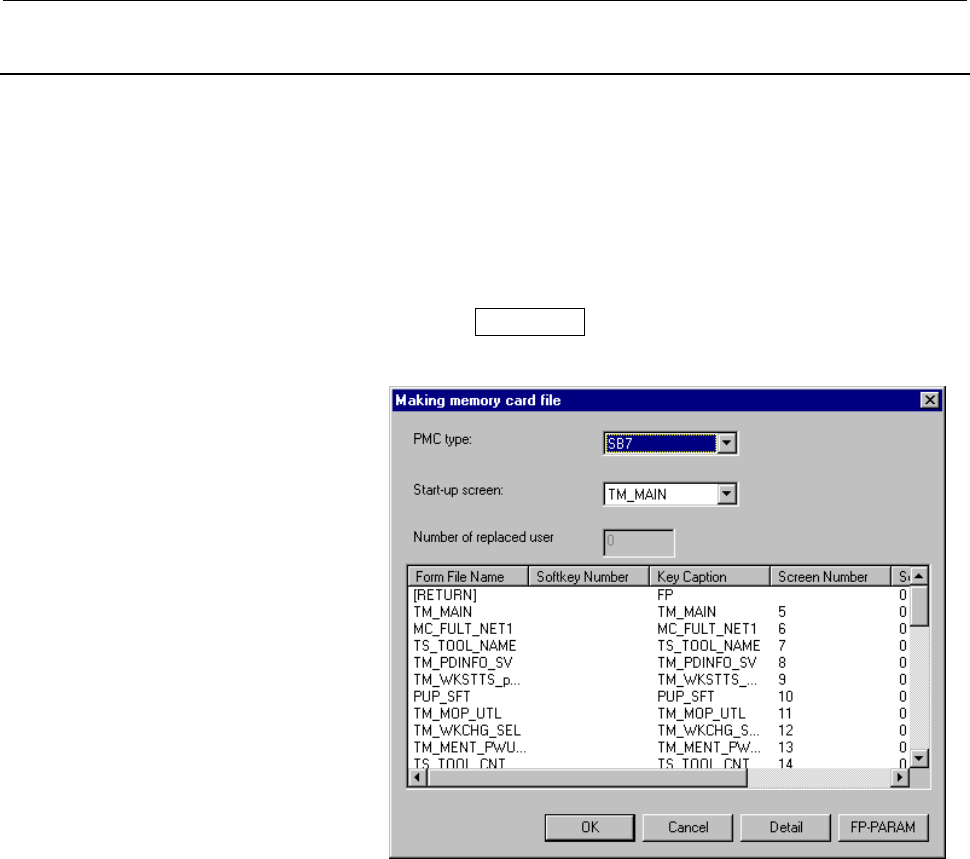

The Making of memory card file dialog box appears.

<2> In the PMC type pull-down list box, select a PMC type (SB7,SB6,

SB5).

<3> In the Start-up screen pull-down list box, select a screen to be

displayed when the power is turned on. In this example of input,

the TM_MAIN screen is selected.

<4> In the Form File Name field, [RETURN] and a form list of created

base screens are displayed. So, double-click a screen to be called

with the NC soft key, and open the Setting of user screen dialog

box.

The Form File Name field of the Making of memory card file

dialog box includes a special screen, namely, [RETURN]. Specify

this screen to display the user screen displayed immediately

before switching to a CNC screen without specifying a user screen

(base screen) created with FANUC PICTURE. Even in this case,

the soft key for calling a user screen in the procedure above needs

to be specified.
