2.FANUC PICTURE (Windows) B-66244EN/03

- 126 -

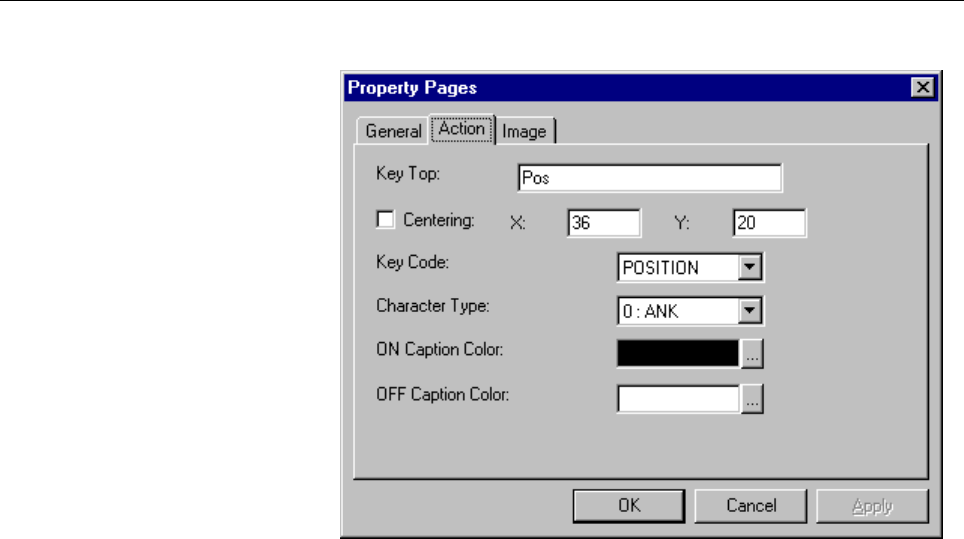

- Action

Key Top:

Specify a caption for the MDI key.

A caption that cannot be completed on one line can be continued

by inserting "\n" before continuing onto the additional line.

Although no new line mark is indicated, new line operation is

automatically performed at the right edge of the rectangle.

If the character string not containable in the rectangle is specified,

those characters that overflow the rectangle are not displayed. If a

character not using a FANUC-specified font is specified, "¨" is

displayed. In such a case, change the character to a displayable

one.

Centering:

Check this check box to center the caption display position

automatically in the vertical and horizontal directions within the

rectangle of the control.

X, Y:

Specify the display position of the caption by using relative

coordinates within the rectangle of the control. Specify the

coordinates of the upper-left corner of the character string to be

displayed. If you have checked the check box for automatic

centering, coordinates after automatic calculation are set.

Key Code:

Specify which MDI key code to be input to the operator's panel

when this button is pressed. Choose from the list box.
