B-63945EN/01 1.DISPLAY AND OPERATION
- 119 -
23 Enter data and the press the
INPUT
key.
24 Repeat steps 22 and 23 until you set all the parameters.
25 Click the [RE-DSPGRAPH] soft key.
26 Click the [MEASUREMENT] soft key.
27 Click the [START] soft key.
28 Start the automatic or manual operation.
29 When the measurement is completed, the wave display screen is
displayed as shown below.

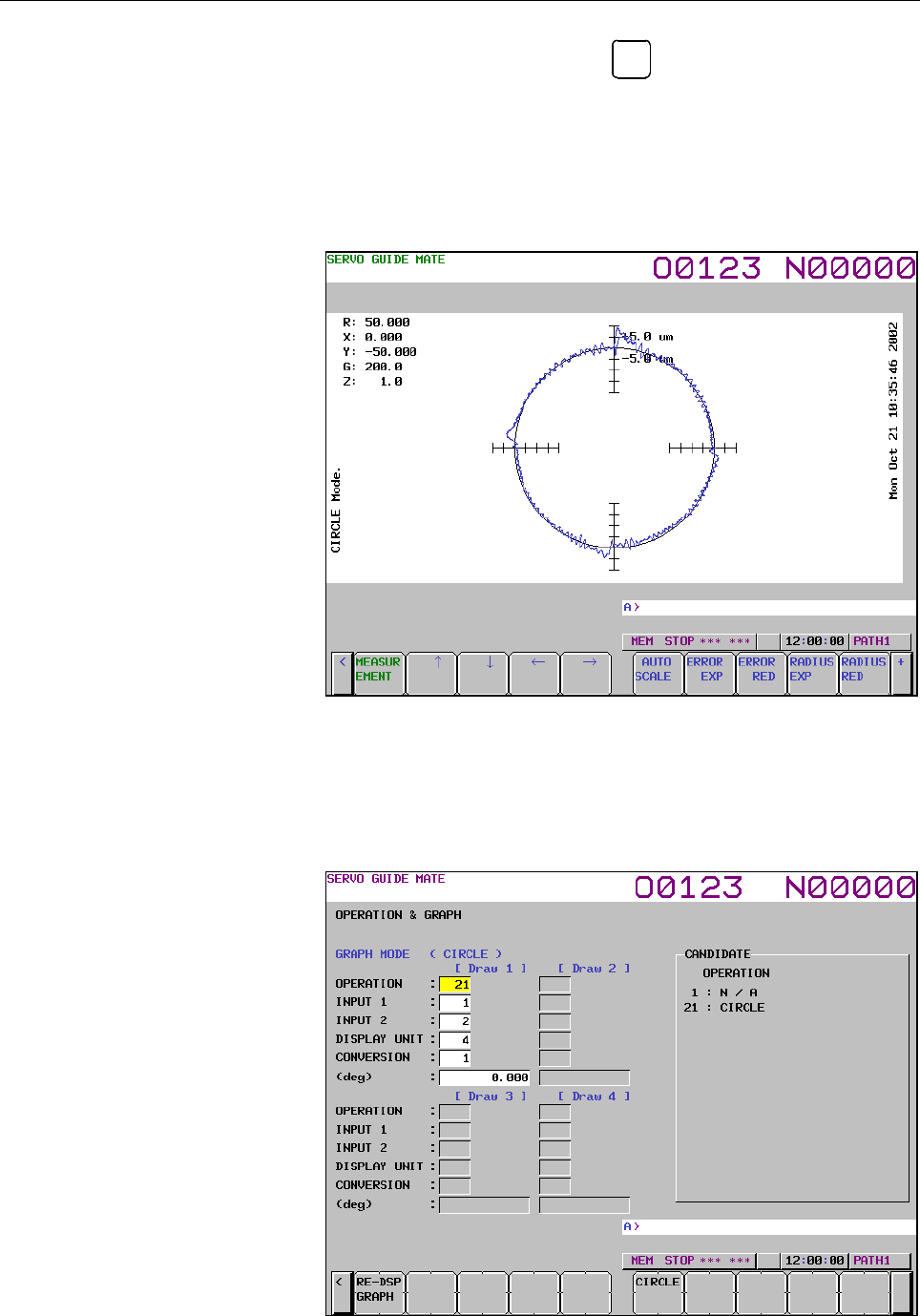

- Changing the operation and graph setting screen
The procedure for changing the operation and graph setting screen as
necessary is described below.
1 Click the [OPERATION & GRAPH] soft key.
The operation and graph setting screen is displayed as shown
below.
Previous page
Next page
