8.EMBEDDED ETHERNET FUNCTION B-63945EN/02

- 492 -

4 Press soft key [EMB ETHER]. The program directory screen is

changed to the contents of the hard disk on the host computer

(embedded Ethernet host file list screen). On this screen, you

can operate files.

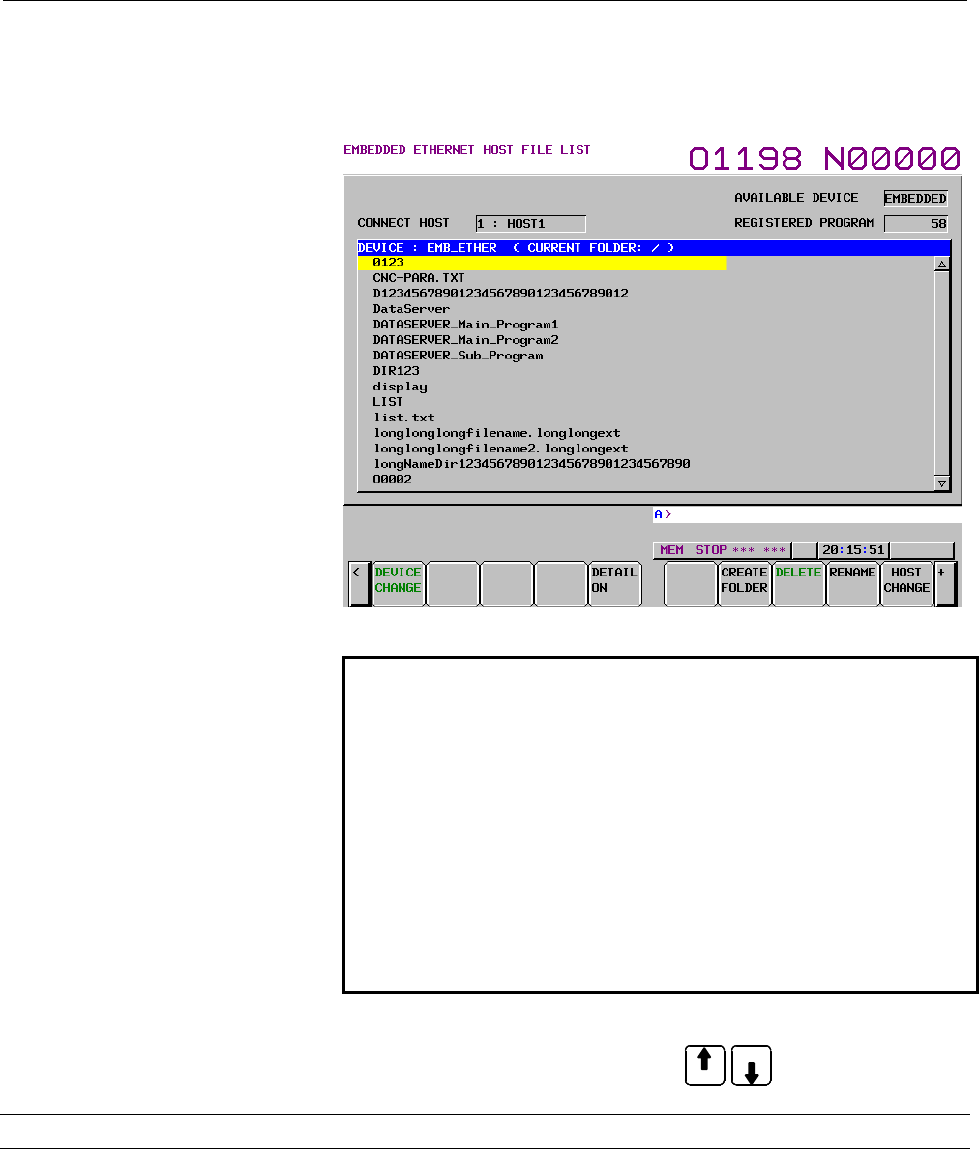

Embedded Ethernet host file list screen

NOTE

When using the FTP file transfer function, check

that the valid device is the embedded Ethernet port.

The two conditions below determine a connection

destination on the host file list screen:

(1) Check that the valid device is the embedded

Ethernet port. Make a selection in "DEVICE

SELECTION" on the Ethernet setting screen.

(2) A host computer can be selected from

connection destinations 1, 2, and 3. Make a

selection according to the [HOST] soft key

described later.

5 When a list of files is larger than one page, the screen display can

be switched using the page keys

PAGE

Display item

AVAILABLE DEVICE

The currently selected device is displayed.

Check that the embedded Ethernet port is selected currently.

CONNECT HOST

Number of the currently connected host of the host computer
