7.INTERFACE BETWEEN CNC AND PMC B-63945EN/02

- 424 -

(4) Displaying Symbols and Comments

(a) Usually, addresses are displayed above contacts and coils.

For an address with a symbol assigned, you can change the

setting so that the symbol is displayed instead of the address.

You can add colors to addresses. For details, see Subsection

“Setting the Display Format of the LADDER DIAGRAM

MONITOR Screen” in the PMC PROGRAMMING

MANUAL.

(b) If the address of a contact has a comment attached, the

comment is displayed below the contact. You can change its

display mode by changing the setting. You can add colors to

comments. For details, see Subsection “Setting the Display

Format of the LADDER DIAGRAM MONITOR Screen” in

the PMC PROGRAMMING MANUAL.

the comment strings will be displayed at the right margin

beside the coil. You can use this margin area to display an

additional relay instead of the comment string by setting: at

this setting, one more relay can be displayed in each

diagram line. You can add colors to comments. For details,

see Subsection “Setting the Display Format of the

LADDER DIAGRAM MONITOR Screen” in the PMC

PROGRAMMING MANUAL.

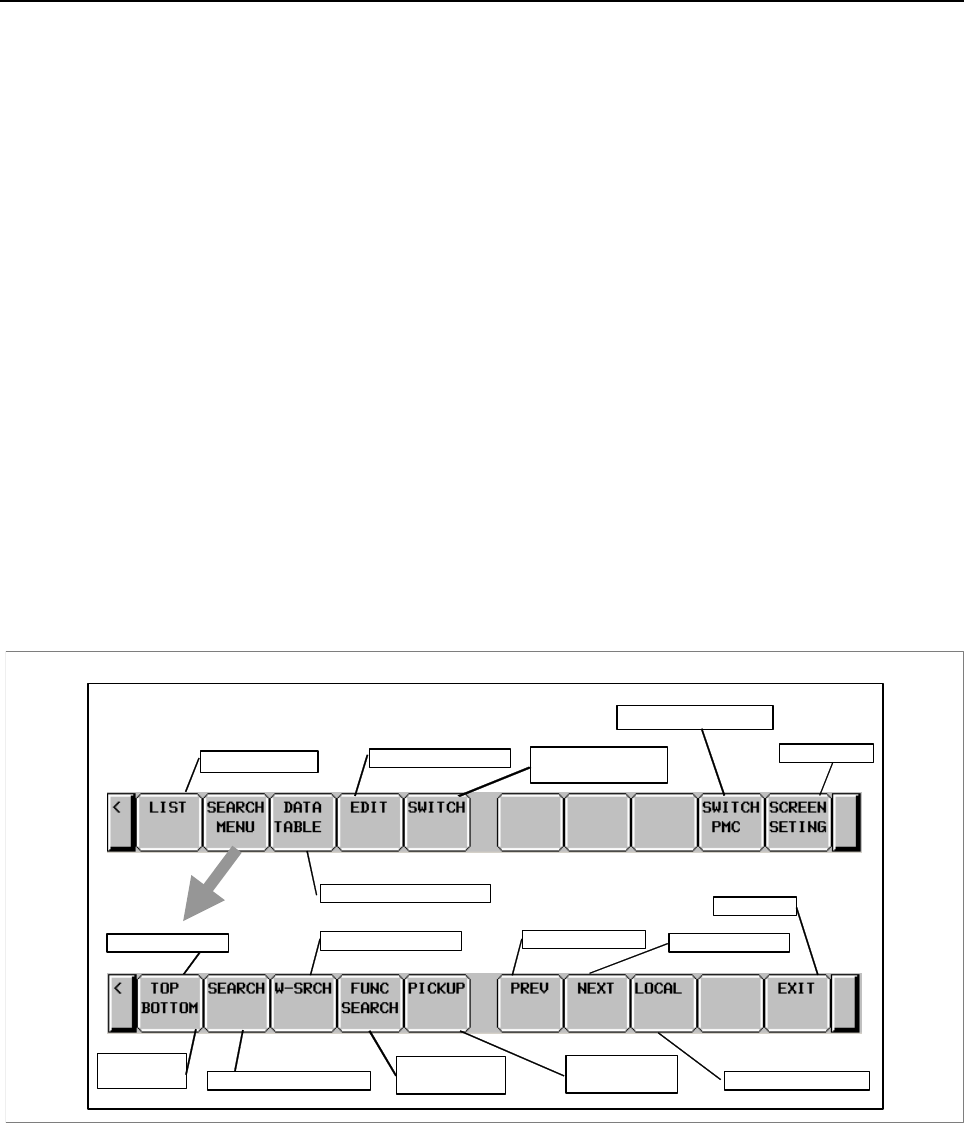

Main soft keys of LADDER Diagram Monitor screen

Program List

Display Data Table

Search next

Search Write Coil

Jump to

Top/Bottom

Search previous

Switch to COLLECTIVE

MONITOR screen

LADDER Diagram Editor

Search Address or Net

Search Functional

Instruction

Pick up a Ladder

Diagram net Switch range

Search soft keys

Exit

Screen Settings

Switch PMC paths
