8.EMBEDDED ETHERNET FUNCTION B-63945EN/02
- 476 -

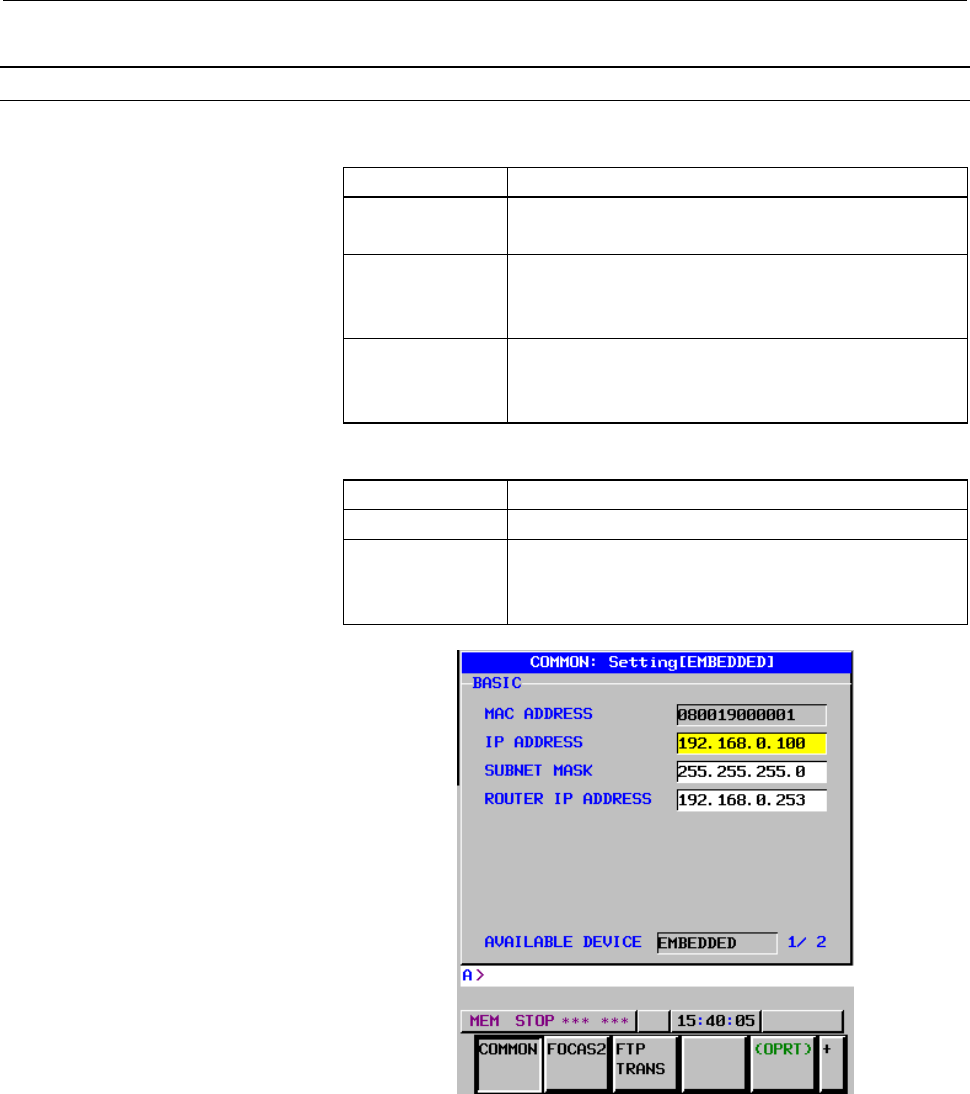

Settings of the FOCAS2/Ethernet function
- Settings on the COMMON screen
Item Description
IP ADDRESS Specify the IP address of the embedded Ethernet.
(Example of specification format: "192.168.0.100")
SUBNET MASK Specify a mask address for the IP addresses of the
network.
(Example of specification format: "255.255.255.0")
ROUTER IP
ADDRESS
Specify the IP address of the router.
Specify this item when the network contains a router.
(Example of specification format: "192.168.0.253")
- Display items on the COMMON screen
Item Description
MAC ADDRESS Embedded Ethernet MAC address
AVAILABLE
DEVICE
Enabled device of the embedded Ethernet.
Either the embedded Ethernet port or the PCMCIA
Ethernet card is displayed.
COMMON screen
Previous page
Next page
