B-63945EN/02 APPENDIX F.MAINTENANCE OF OPEN CNC (BOOT-UP AND IPL)

- 761 -

F.4.3.2 Option setting screen (Series 300is/310is/320is)

To open the option setting screen, double-tap the icon in the system

tray. Alternatively, select [Open] from the popup menu of the system

tray.

NOTE

For any changes made on the option setting screen

of the Series 300is/310is/320is to take effect, you

must turn the power off and back on.

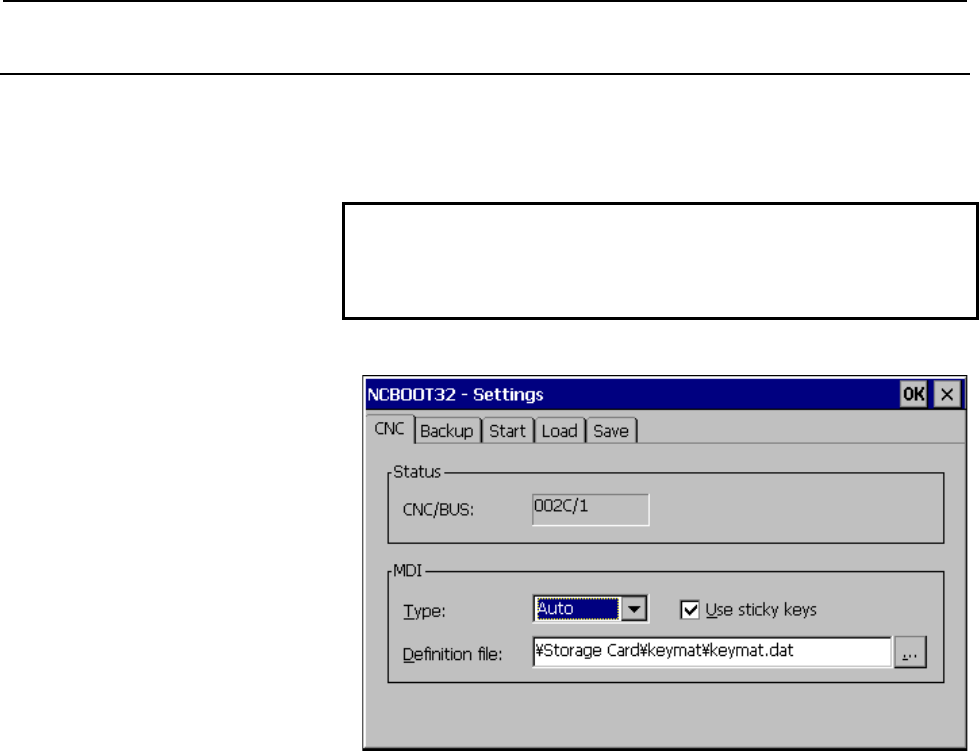

CNC setting screen

[Status]-[CNC] : Status (in hexadecimal)

Bit1 : Rotary switch position 1

Bit2 : End of boot processing

Bit3 : End of IPL processing

Bit4 : Rotary switch position 2

Bit5 : Display of 30 lines on IPL/system alarm screen

Bit8 : CNC system alarm

[Status]-[Bus] :

Hardware communication status (0: Communication error, 1:

Communication established)

[MDI]-[Type] allows you to select an MDI key type.

Auto :

QWERTY MDI key type, M and T series standard MDI key

type

M series : MDI keyboard for M series

T series : MDI keyboard for T series

Selecting [MDI]-[Use sticky keys] allows you to use the functions of

the Shift, Ctrl, and Alt keys without pressing these keys in

combination with other keys. For example, you can press Alt first and

then 'F' instead of pressing Alt and 'F' at the same time. If you remove

the check mark, you must press Alt and 'F' at the same time.
