5.6 OTHER UNITS
5.6.1 Separate Detector Interface Unit
- Specification
Name Specification
Basic unit A02B-0303-C205
Additional unit A02B-0236-C204

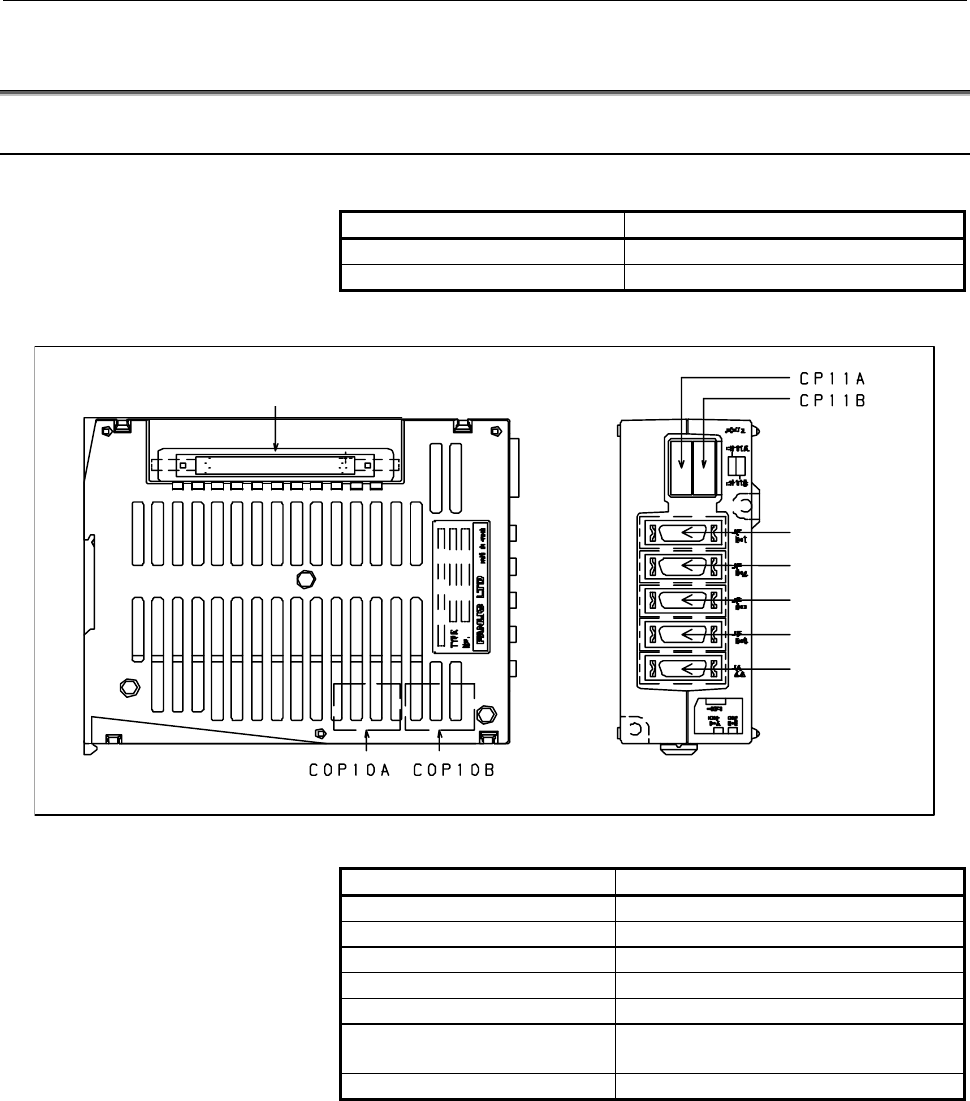

- Connector mounting location
JF101(JF105)
JF102(JF106)
JF103(JF107)
JF104(JF108)
JA4A
CNF1 (CNF2)
The parenthesized connector names are for the additional unit.
Connector number Application
CP11A 24 VDC power input
CP11B 24 VDC power output
COP10A Back stage of the FSSB interface
COP10B Front stage of the FSSB interface
JF101 to JF104 (JF105 to JF108) Separate detector interface
JA4A Connection of a battery for the absolute
detector
CNF1 (CNF2) Connection of the additional unit
The parenthesized connector names are for the additional unit.
