3.LCD-MOUNTED TYPE Series 300is/310is/320is HARDWARE B-63945EN/02

- 208 -

3.6.1 Replacement Procedure

1 Remove the LCD-mounted type control unit, referencing Section

5.13, “MOUNTING AND REMOVING LCD AND MDI

UNITS.”

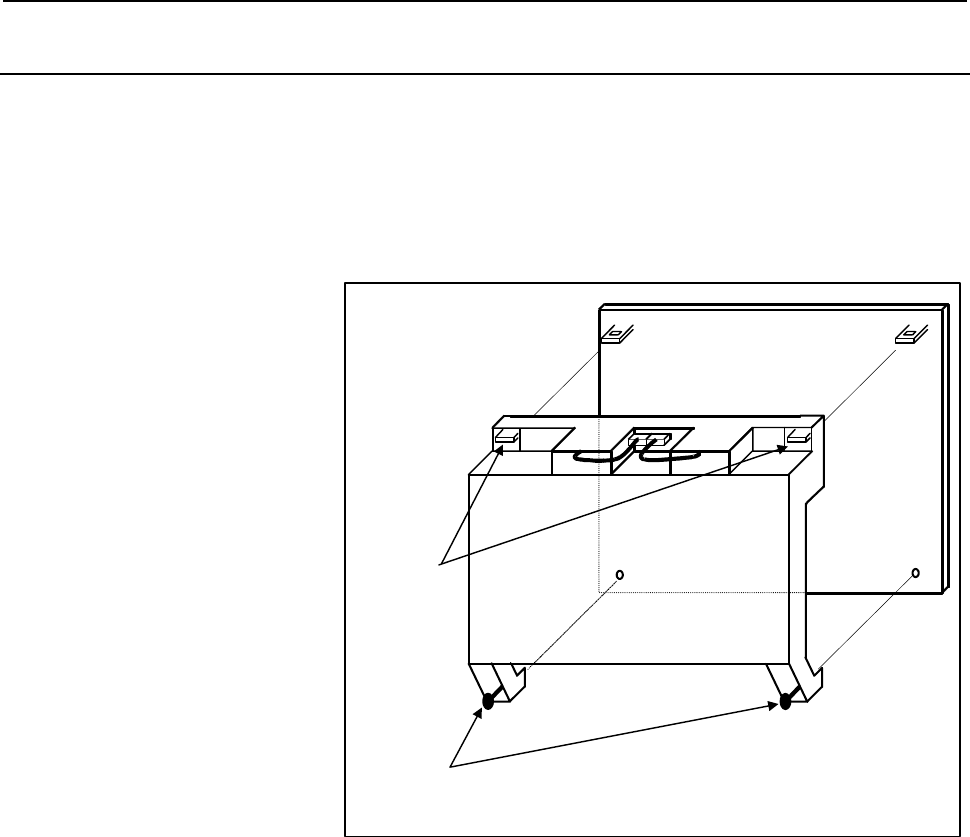

2 Remove the two screws at the bottom of the case, then remove

the case while pushing down the claws located on the upper side.

At this time, the fan and battery cables need not be detached.

Craw

Screws

Note) The screws are locked so as not to be detached from

the case.

3 Detach the cables from the connectors CA88A (PCMCIA

interface connector), CD46L (USB interface connector), and

CK20A and CK21A (connectors for soft keys) on the main

board.

When the 10.4" LCD is used, remove CA79A (video signal

interface connector). When the 12.1" LCD is used, remove

CA79A (video signal interface connector) and CPD12. When the

15" LCD is used, remove CA98 (video signal interface

connector) and CPD12. When a touch panel is provided, remove

TP2 (connector for the touch panel) as well.
