7.INTERFACE BETWEEN CNC AND PMC B-63945EN/02
- 414 -

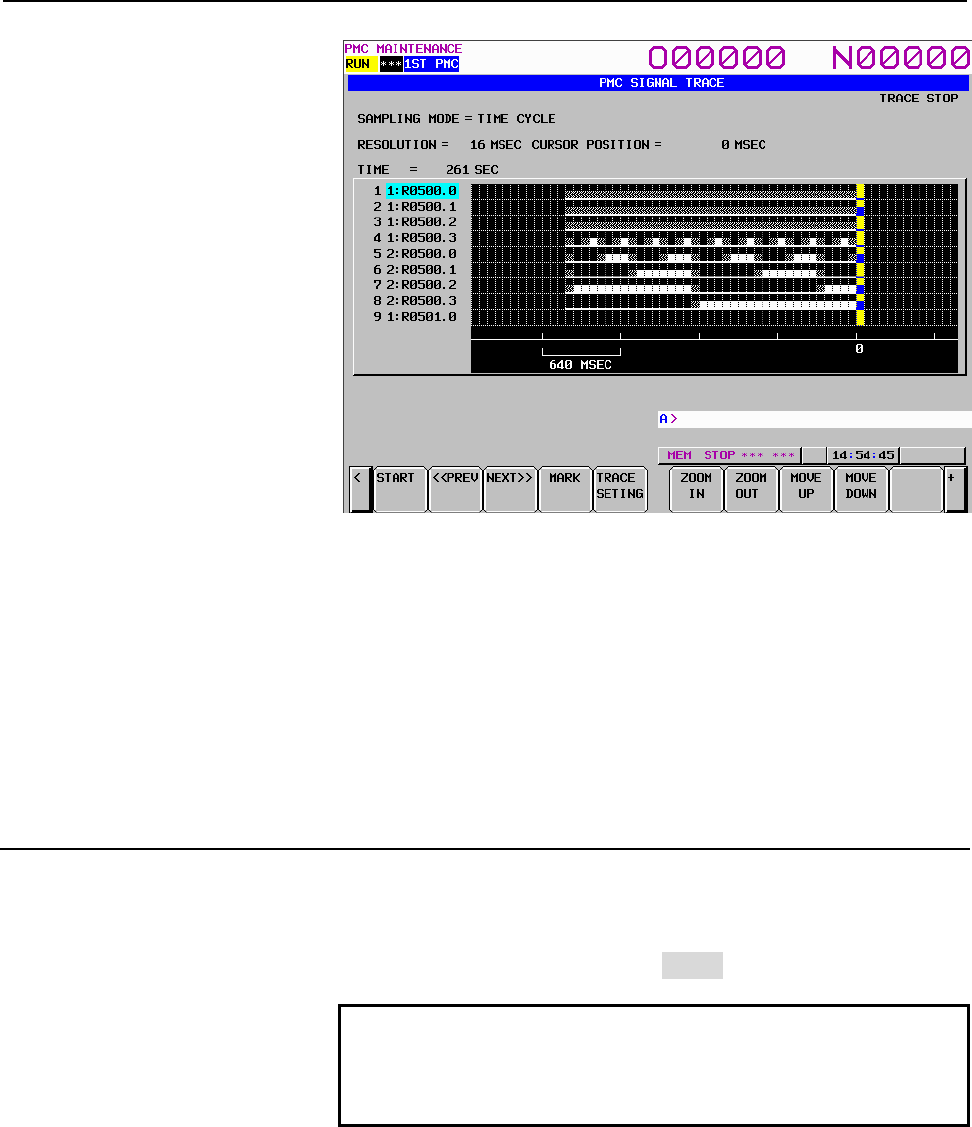

Result of trace screen (Zoom out display)
d) Exchange of sampling signal
Pushing [MOVE UP] soft key exchanges the signal indicated by
the signal cursor for the signal one line above. Pushing [MOVE
DOWN] soft key exchanges the signal indicated by the signal
cursor for the signal one line below. The result of the operation is
cancelled by the execution of trace or putting the power off.
When you would like to preserve the order of displayed signals
against the executing or powering off, please change the order on
"SAMPLING ADDRESS" screen.
7.5.11.2 Automatic start of trace setting
Trace execution is automatically started after power-on by setting a
PMC setting data.
• TRACE START = MANUAL/AUTO
NOTE
For details of the method of setting PMC setting
data, see PMC PROGRAMMING MANUAL
(B-63983EN).
Previous page
Next page
