1.DISPLAY AND OPERATION B-63945EN/01
- 58 -

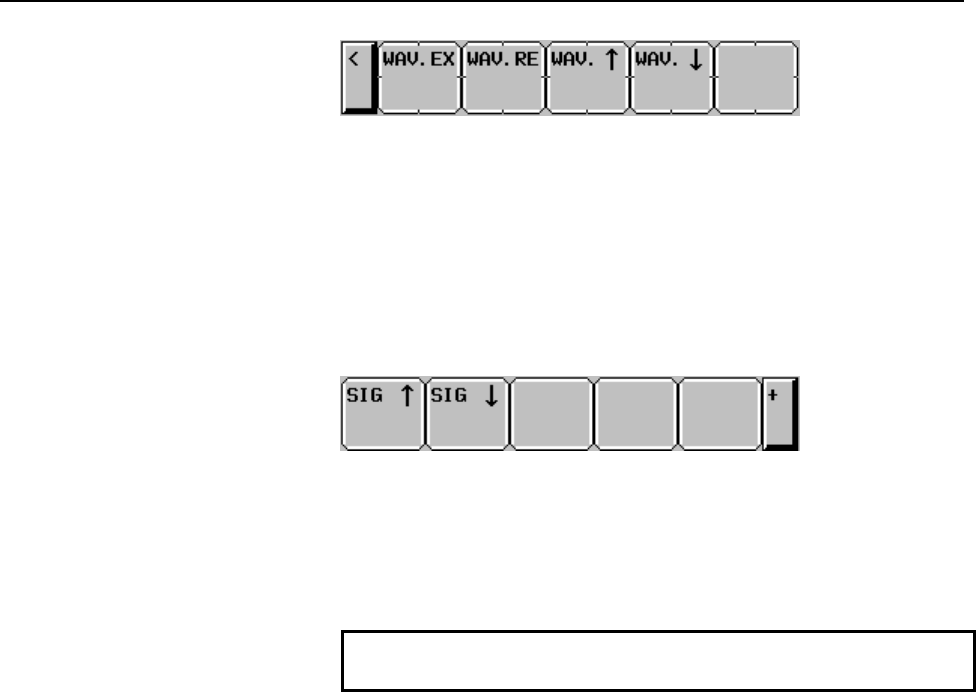

When [WAVE.EX] or [WAVE.RE] is pressed, the length of the time
axis on one screen is extended or reduced, respectively. The
graduation unit on the horizontal axis, which is a parameter, also
changes automatically.
The graduation unit changes from 1 to 2 to 5 to 10 to 20 to 50 to 100,
and so on.
When [WAVE.↑] or [WAVE.↓] is pressed, each waveform of servo
and spindle data can be moved upward or downward.
Displaying signal data
Up to 32 signals can be measured at the same time. Up to nine
signals can be displayed at the same time if only signal data is
displayed, or up to four signals can be displayed if signal data is
displayed over waveforms.
When [SIG.↑] or [SIG.↓] is pressed, the currently displayed signals
are changed.
NOTE
Signal data cannot be moved.
Previous page
Next page
