11.TROUBLESHOOTING B-63945EN/02

- 572 -

Example)

In the normal state, pressing the "+X" button on the

operator's panel causes the signal +Jn to be displayed as "1".

* This signal becomes effective when the rise of the signal is

detected. If, therefore, the direction selection signal has

been entered before jog mode selection, axis movement is

not performed; set the bit "0" and then re-check the signal.

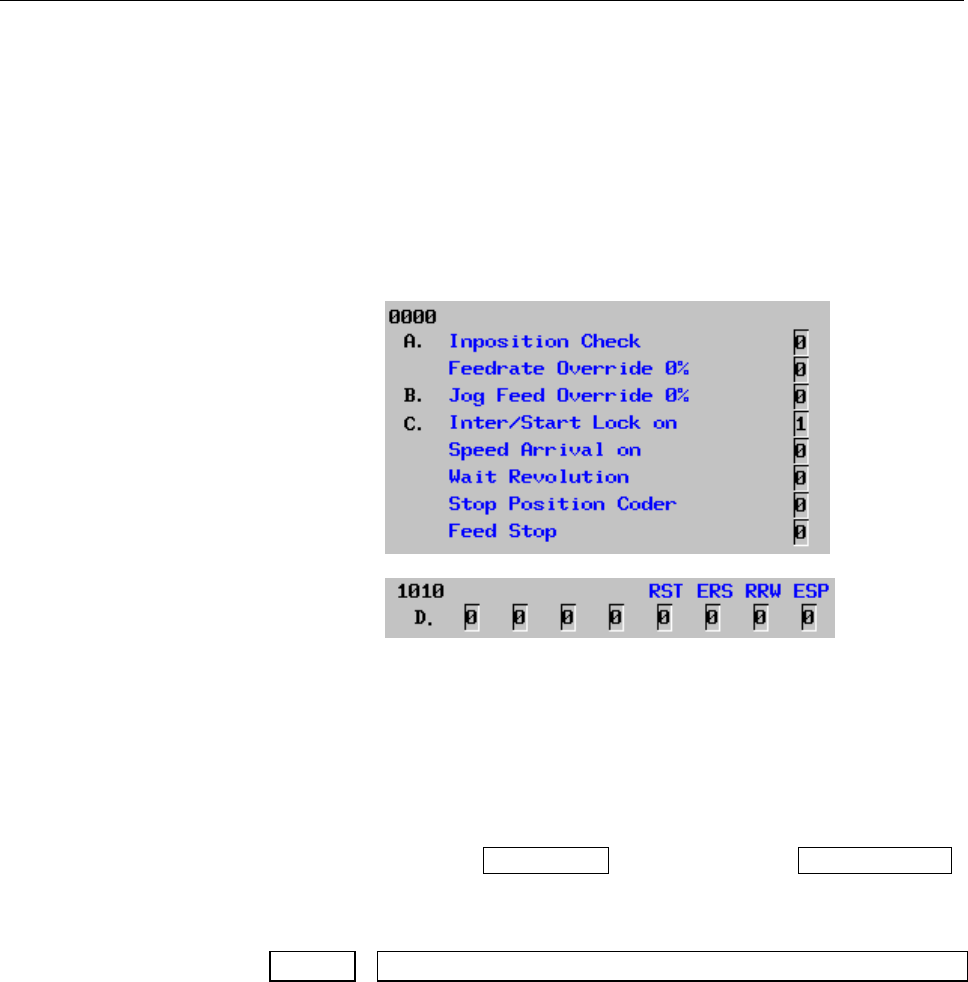

(3) Check diagnosis functions 0000 and 1010 of the CNC. Check the

items for which 1 is displayed at right side.

* Items with a to d relate with manual and automatic

operation and its detail is shown below.

(a) In-position check is being done

It shows that positioning is not yet completed. Check the

contents of the following diagnosis number. (It is 1 in the

following condition)

DGN0300 Position Error>Parameter No.1826 In-position width

(i) Check the parameters according to the parameter list.

1825 Servo loop gain per axis (Normal : 3000)

(ii) Servo system may be abnormal. Refer to servo alarm

SV0400, SV0410, and SV0411.
