5. PERIODIC MAINTENANCE

OF SERVO AMPLIFIER START-UP PROCEDURE B-65165E/02

- 86 -

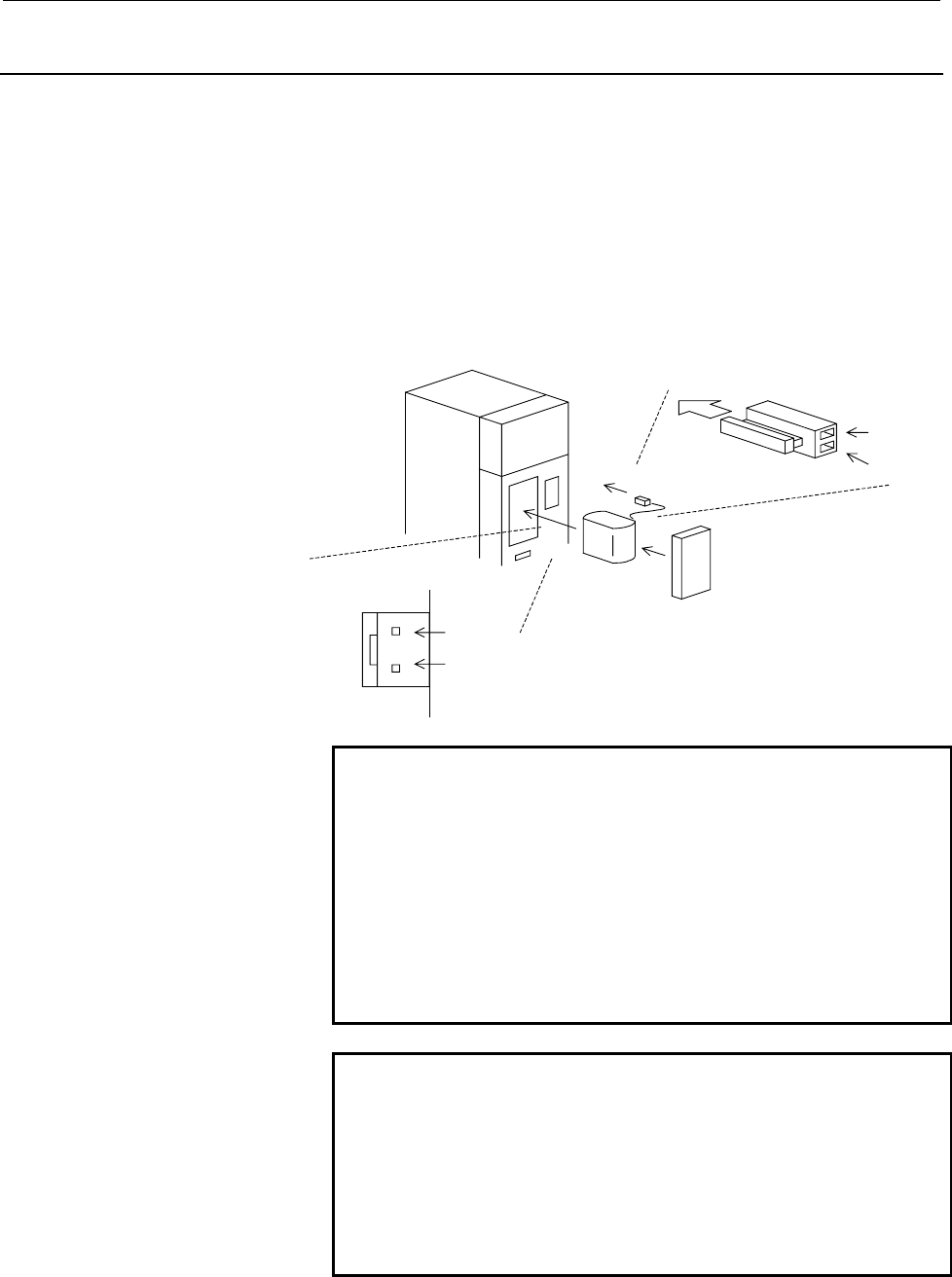

5.1.1 Installing a Special Lithium Battery in the SVM (Method 1)

A special lithium battery (A06B-6073-K001) can be installed in the

SVM (see the figure below).

[Installation procedure]

(1) Remove the battery cover from the SVM.

(2) Install the battery in the SVM as shown in the figure below.

(3) Install the battery cover.

(4) Attach the battery connector to CX5X or CX5Y of the SVM.

Battery

SVM

Battery cover

Inserting direction

Red: +6 V

Black: 0 V

CX5X, CX5Y

+6 V

0 V

Connector

Cable side

WARNING

1 Install the battery with correct polarity. If the battery

is installed with incorrect polarity, it may overheat,

blow out, or catch fire.

2 When installing the battery with its connector

attached to connector CX5X or CX5Y, attach the

factory-installed protection socket to the unused

connector. When the +6-V and 0-V pins of CX5X or

CX5Y are short-circuited, the battery may overheat,

blow out, or catch fire.

CAUTION

1 You may attach the battery connector to either CX5X

or CX5Y.

2 When the battery is installed in the SVM from the

side from which the cable is drawn, the cable may be

stretched tight, which can lead to a poor contact

condition. Therefore, install the battery so that the

cable is not extended tightly.
