3. TROUBLESHOOTING

AND ACTION TROUBLESHOOTING B-65165E/02

- 134 -

Alarm detail

information

<1>

<2>

<3>

<4>

<5>

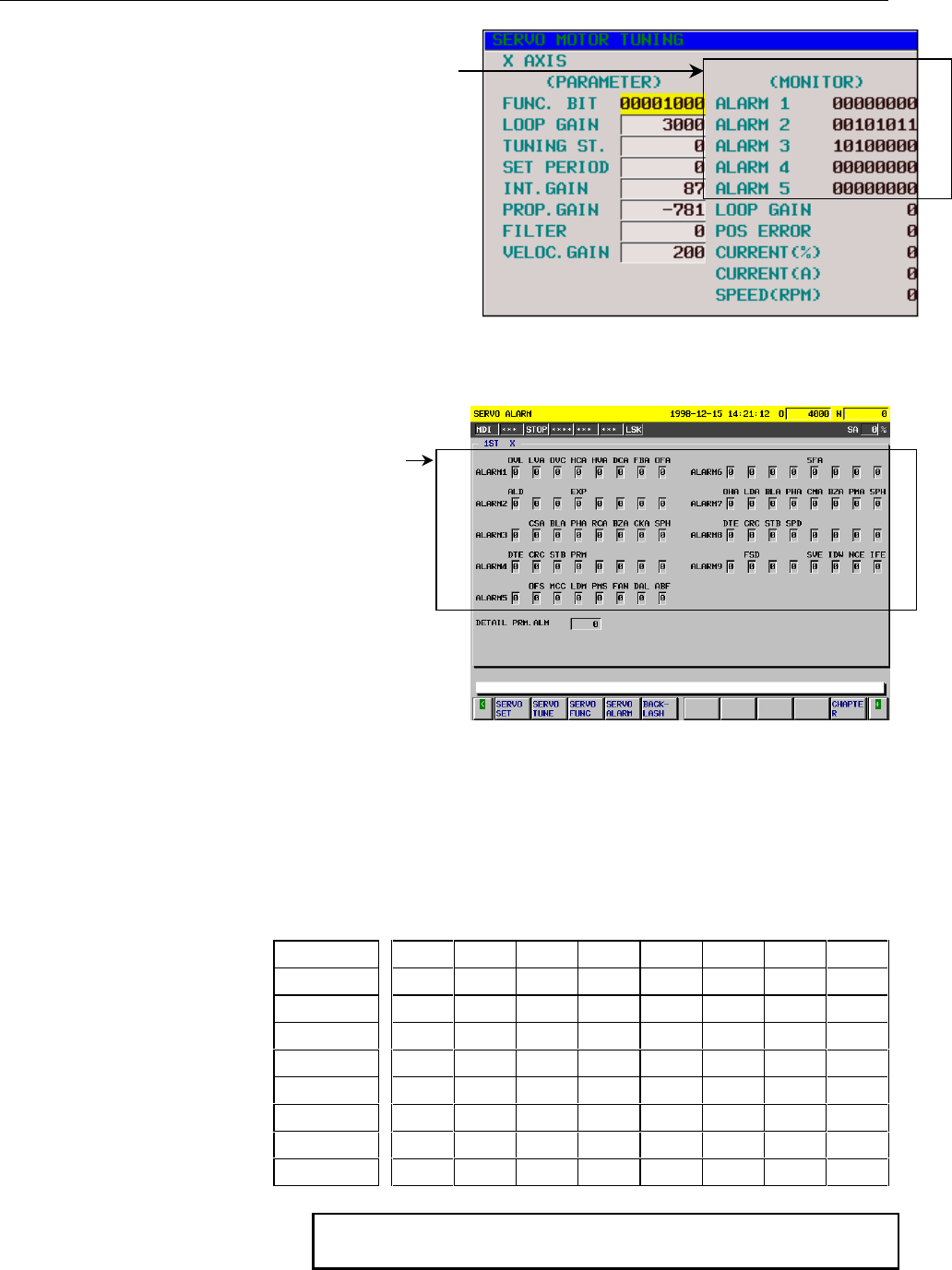

Fig. 3.3.1(a) Servo adjustment screen

<1>

<2>

<3>

<4>

<5>

<6>

<7>

<8>

<9>

Alarm detail

information

Fig. 3.3.1(b) Series 15i servo alarm screen

The table below indicates the names of the alarm bits.

Table 3.3.1 List of alarm bit names

#7 #6 #5 #4 #3 #2 #1 #0

<1> Alarm 1 OVL LVA OVC HCA HVA DCA FBA OFA

<2> Alarm 2 ALD EXP

<3> Alarm 3 CSA BLA PHA RCA BZA CKA SPH

<4> Alarm 4 DTE CRC STB PRM

<5> Alarm 5 OFS MCC LDM PMS FAN DAL ABF

<6> Alarm 6 SFA

<7> Alarm 7 OHA LDA BLA PHA CMA BZA PMA SPH

<8> Alarm 8 DTE CRC STB SPD

<9> Alarm 9 FSD SVE IDW NCE IFE

NOTE

The empty fields do not represent alarm codes.
