Servo Motor Alpha Series Maintenance manual Page 201

Maintenance manual
3. TROUBLESHOOTING
B-65165E/02 TROUBLESHOOTING AND ACTION
- 173 -
3.5 POWER-FAILURE BACKUP MODULE

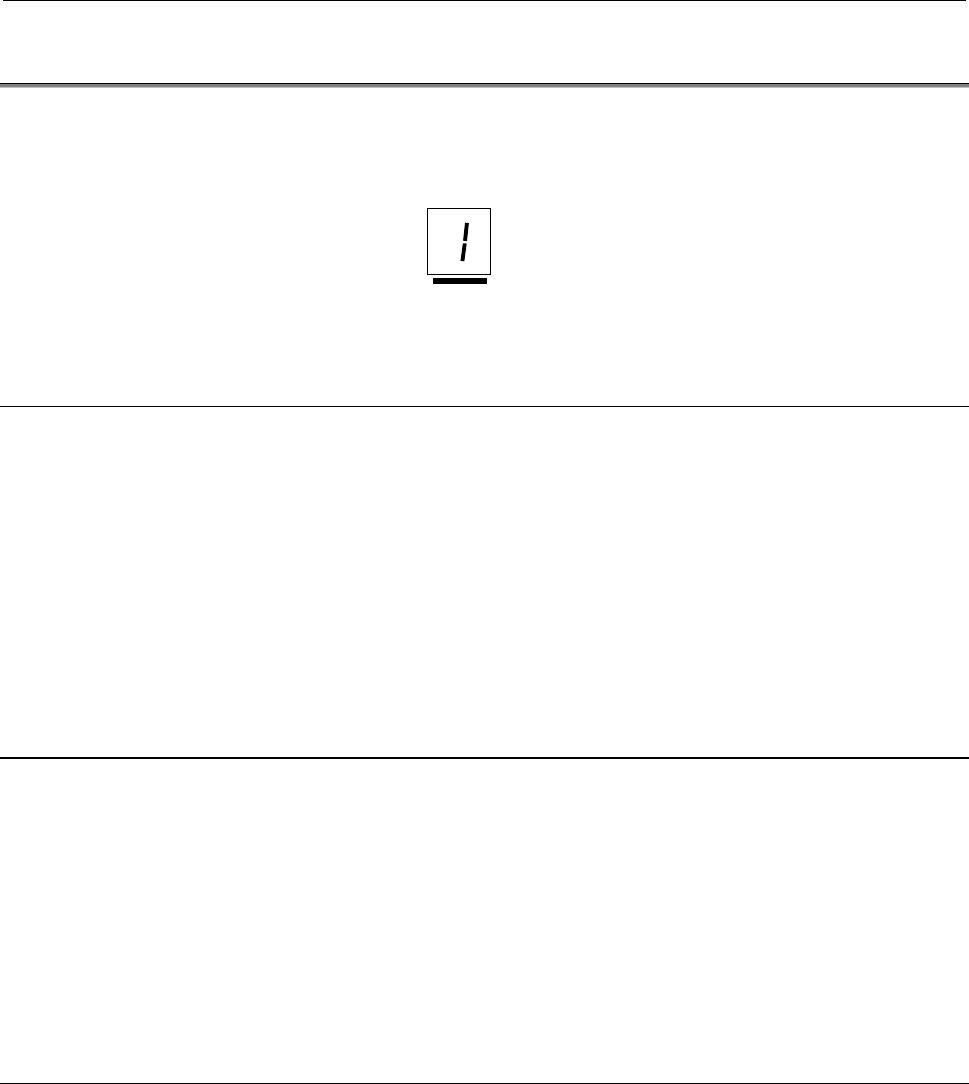

When an alarm is issued, the one-digit 7-segment LED indicates an
alarm code.
Indicates an alarm code (01 or above).
3.5.1 Alarm Code 1
(1) Meaning
Sub-module C cannot be charged.
(2) Cause and troubleshooting
(a) Sub-module C connection error
→ Check the connection.
(b) Charging circuit failure
→ Replace the power-failure backup module.
3.5.2 Alarm Code 2
(1) Meaning
After sub-module C was charged, the voltage decreased for a
cause.
(2) Cause and troubleshooting
(a) Charging circuit failure
→ Replace the power-failure backup module.
3.5.3 Alarm Code 3
(1) Meaning
An abnormal current flowed in sub-module R.
(2) Cause and troubleshooting
(a) Excessive regenerated power
→ If the sum of maximum servo motor outputs exceeds 20
kW, use two sub-module R units.
(b) Regenerative circuit failure
→ Replace the power-failure backup module.
