Servo Motor Alpha Series Maintenance manual Page 182

Maintenance manual
3. TROUBLESHOOTING
AND ACTION TROUBLESHOOTING B-65165E/02
- 154 -
(3) If this alarm is issued when the motor rotates
(a) The shielding of the cable between the preamplifier or MZ
sensor (for TYPE4) and the SPM is faulty.
Referring to Chapter 9, "Connection," in "FANUC SERVO
AMPLIFIER α series Descriptions (B-65162E)," check the
shielding of the cable.
(b) The signal cable is bundled with the servo motor power line.
If the cable between the preamplifier or MZ sensor (for
TYPE4) and the SPM is bundled with the servo motor power
line, separate them from each other.
(c) Improve the cable routing between the motor and
preamplifier.
If the cables (including those within a terminal box)
extending from the motor to the preamplifier are close to the
power line, separate the cables from the power line.

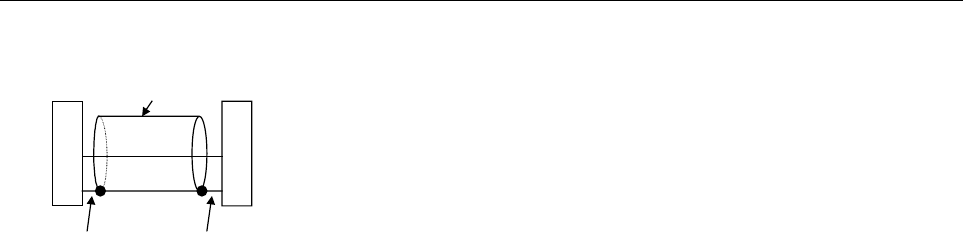

S
P
M
Sensor
The cable is
connected to the
pin specified in the
specifications on
the sensor side.
The cable is
connected to
pin 10 on the
SPM side.
Shielded cable
