1. AC SERVO MOTOR

B-65165E/02 MOTOR MAINTENANCE MAINTENANCE

- 211 -

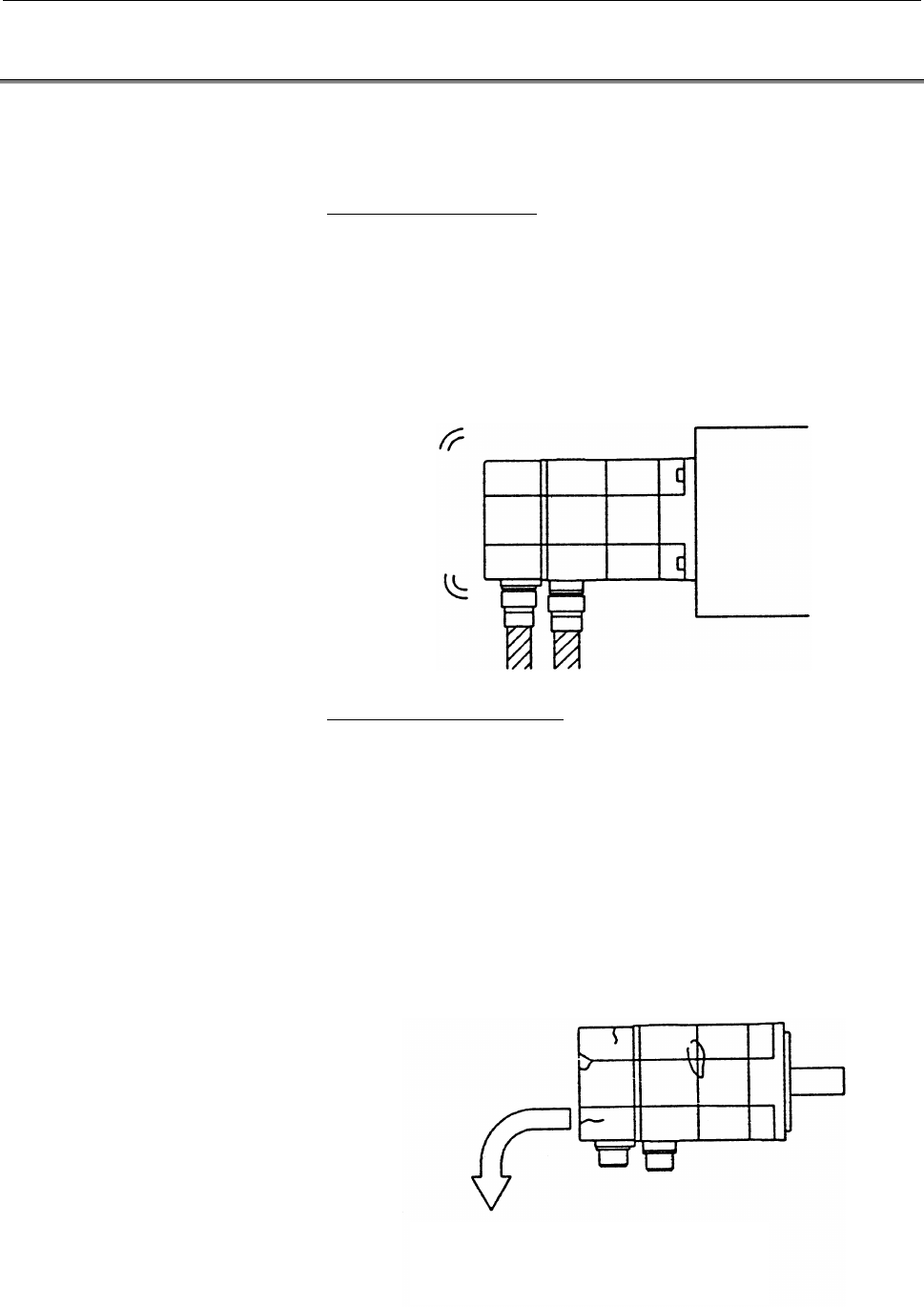

1.2 DAILY INSPECTION OF AC SERVO MOTORS

Before starting operation, or periodically (once a week or month), you

should inspect the AC servo motors in terms of the following:

(1) Vibration and noise

Check the motor for abnormal vibration (by the hand) and noise

(by the ear) when the motor is:

• Not rotating

• Rotating at low speed

• Accelerating or decelerating

If you find anything unusual, contact your FANUC service staff.

(2) Damage on the outside

Check the motor cover (red plastic) for crevices and the motor

surface (black coating) for scratches and cracks.

If you find a crevice in the motor cover, you should replace it as

quickly as possible. For how to replace, see the description about

the pulse coder in Section 1.4. If you are not sure about

replacement, contact you FANUC service staff.

If there is a scratch or crack on the motor surface, the user should

repair it by himself as required. If coating has come off, dry the

portion of interest (or the entire surface) and coat it with paint for

machines such as urethane paint.

Replace a motor cover with a crevice or crack

as quickly as possible.
