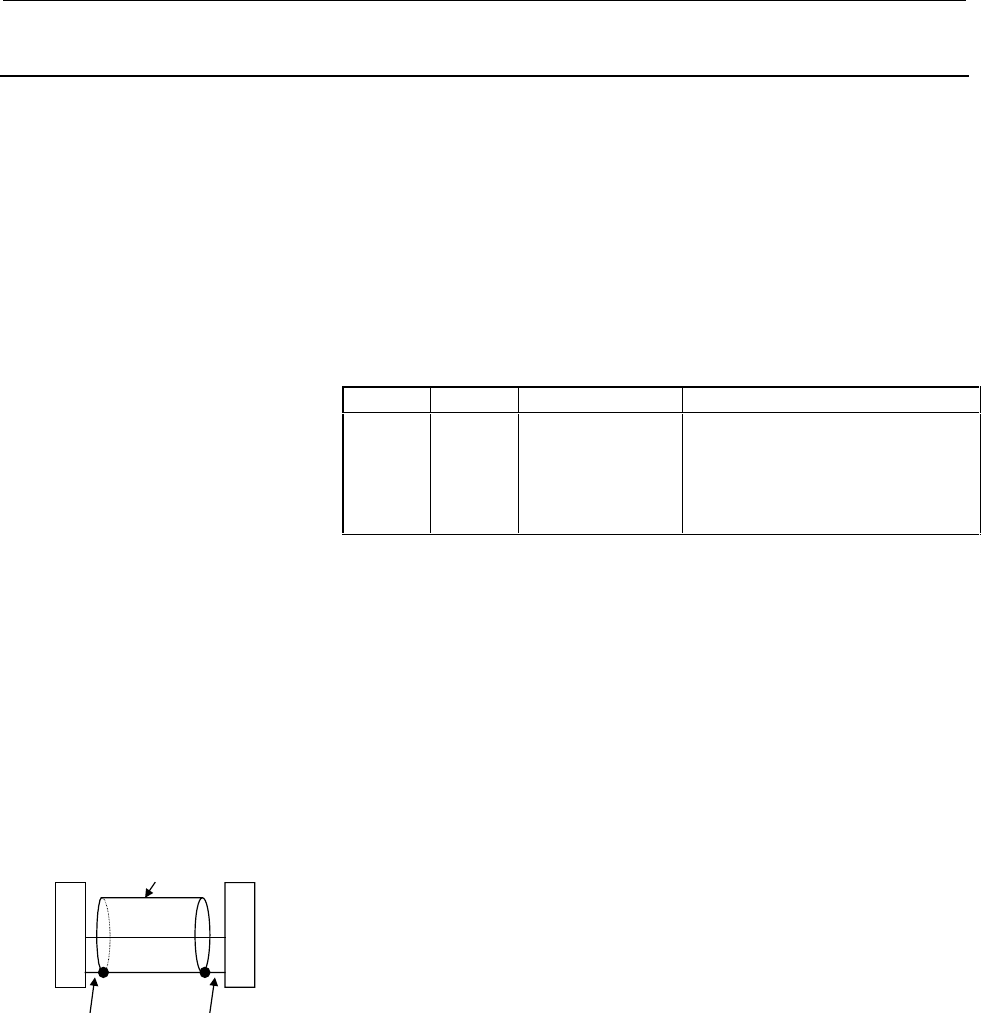

3.4.2 Alarm Code 39
The position where the one-rotation signal for Cs contour control is
generated is incorrect. This alarm is not issued when the parameter
indicated below is not set.
<1> When SPM TYPE2 is used, phase A/B/Z on the high-resolution
(1000 to 3000 λ) side of the high-resolution magnetic pulse coder
on the spindle side has a problem.
<2> When SPM TYPE4 is used, the spindle sensor connected to JY5 is
faulty.
Troubleshoot as in the case of alarm code 41.
FS0 FS15i FS16i/16, PM-D/F Description
6516#5 3016#5 4016#5 Whether the function for detecting
the one-rotation signal of the
detector for Cs contour control is
provided
1: The function is provided.
Troubleshooting when this alarm is issued (at the time of reference
position return on the Cs axis)
(a) The setting of a parameter is incorrect.
Referring to Chapter 2 in "FANUC AC SPINDLE MOTOR
α series Parameter Manual (B-65160E)," check the
parameter for sensor setting.
(b) The sensor is not adjusted correctly.
Adjust the sensor according to Subsection 4.3.4 of Part I of
this manual. If the signal is not observed, replace the sensor.
(c) The shielding of the cable between the preamplifier and
SPM is faulty.
Referring to Chapter 9, "Connection," in "FANUC SERVO
AMPLIFIER α series Descriptions (B-65162E)," check the
shielding of the cable.
(d) The signal cable is bundled with the servo motor power line.
If the cable between the preamplifier and SPM is bundled
with the servo motor power line, separate them from each
other.
(e) Improve the cable routing between the motor and
preamplifier.
If the cables (including those within a terminal box)
extending from the motor to the preamplifier are close to the
power line, separate the cables from the power line.
(f) The SPM is faulty.
Replace the SPM or SPM control printed circuit board.
S
P
M
Sensor
The cable is
connected to the
pin specified in the
specifications on
the sensor side.
The cable is
connected to
pin 10 on the
SPM side.
Shielded cable
