Servo Motor Alpha Series Maintenance manual Page 99

Maintenance manual
4. CONFIRMATION OF
B-65165E/02 START-UP PROCEDURE THE OPERATION
- 69 -

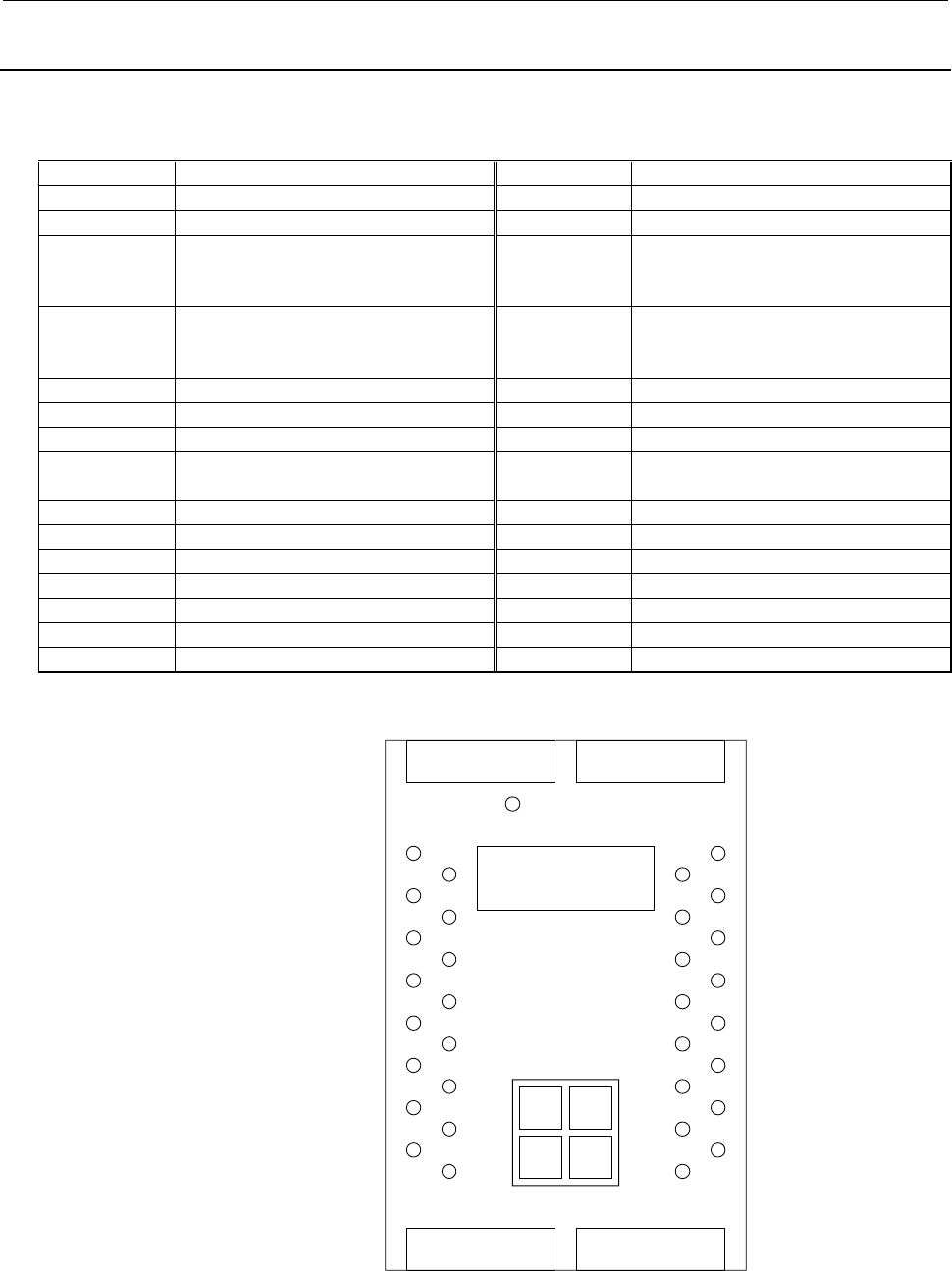

4.3.5.3 Check terminal output signals
(1) A06B-6078-H001 (A20B-2001-0830) check terminal output
signals
Check terminal Signal name Check terminal Signal name
LM Load meter signal PA1 Phase A sine wave signal 1
SM Speed meter signal PB1 Phase B sine wave signal 1
CH1 Analog output for internal data
observation
(Phase U current: IU. See 4.3.6.8 (3).)
PS1 Phase Z sine wave signal 1
CH2 Analog output for internal data
observation
(Motor speed TSA: 1638 min
-1
/V)
PA2 Phase A sine wave signal 2
CH1D Output for internal data bit observation PB2 Phase B sine wave signal 2
CH2D Output for internal data bit observation PS2 Phase Z sine wave signal 2
VRM Sensor reference voltage PA3 Phase A sine wave signal 3
LSA1 Magnetic sensor output LSA signal
(main)
PB3 Phase B sine wave signal 3
EXTSC1 External one-rotation signal (main) PA4 Phase A sine wave signal 4
LSA2 Magnetic sensor output LSA signal (sub) PB4 Phase B sine wave signal 4
EXTSC2 External one-rotation signal (sub) OVR2 Analog override command
PAD Phase A of position coder signal output 15V +15 VDC power check
PBD Phase B of position coder signal output 5V +5 VDC power check
PSD Phase Z of position coder signal output -15V -15 VDC power check
GND 0 V
Check terminal arrangement
LM
LSA2
SM
EXTSC2
VRM
0V
PA2
PB2
PS2
0V
PAD
PBD
PSD
5V
15V
-15V
PIL
Operation
buttons
Display
CH1
CH1D
CH2
0V
PA1
PB1
PS1
0V
LSA1
EXTSC1
CH2D
PA3
PB3
PA4
PB4
OVR2
DOWN
DATA
SET
UPMODE
