Servo Motor Alpha Series Maintenance manual Page 74

Maintenance manual
4. CONFIRMATION OF
THE OPERATION START-UP PROCEDURE B-65165E/02
- 44 -

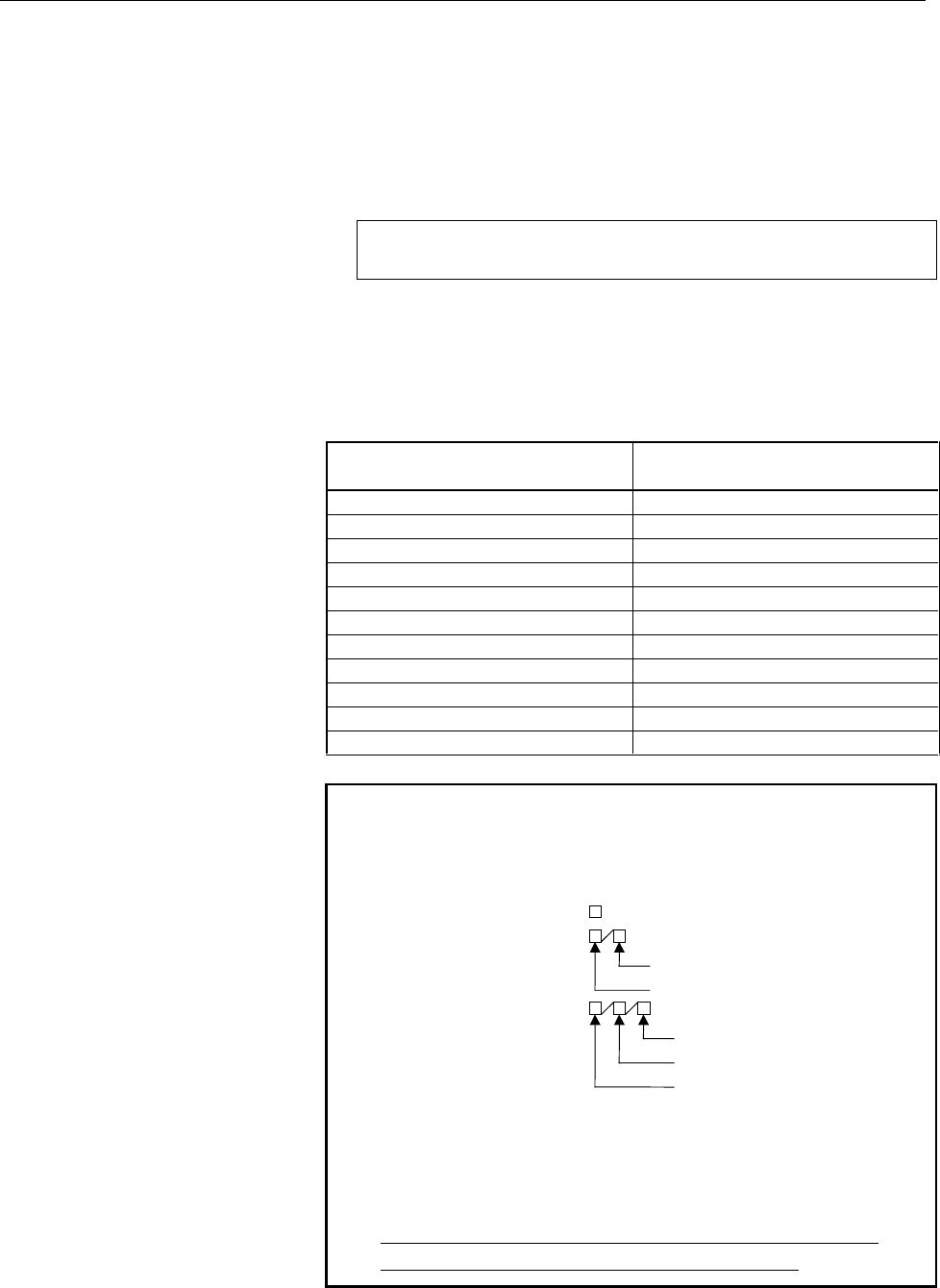

(4) Observing the motor current
You can observe an instantaneous motor current value by
observing the voltage across a reference voltage (0 V) check pin
and a motor current check pin with an oscilloscope. Note that you
cannot use a device such as a multimeter to observe correct
values.
(Instantaneous motor current value) = (voltage at motor current
check pin) × (factor for calculating motor current)
Calculation example:
When the voltage at a motor current check pin is 3.2 V, and
the factor for calculation is 3 A/V:
Actual motor current (A) = 3.2 V × 3 A/V = 9.6 A
Limit of instantaneous motor
current value [A](Note 1)
Factor for calculating motor
current [A/V](Note 2)
20.5
41
12 3
20 5
40 10
60 15
80 20
130 32.5
240 60
320 80
360 90
NOTE
1 Limit of instantaneous motor current value
Values in in servo amplifier names indicate the
limits of instantaneous motor current values.
Single-axis amplifier: SVM1-
M axis
L axis
N axis
M axis
L axis
Double-axis amplifier: SVM2-
Triple-axis amplifier: SVM3-
2 The factor for calculating the motor current of an
SVM not listed in the above table can be obtained
from the model name of the servo amplifier as
follows:
Factor for calculating the motor current = (limit of
instantaneous motor current value) ÷ 4 V
