6.1 LCD–Mounted Type i Series Hardware

162

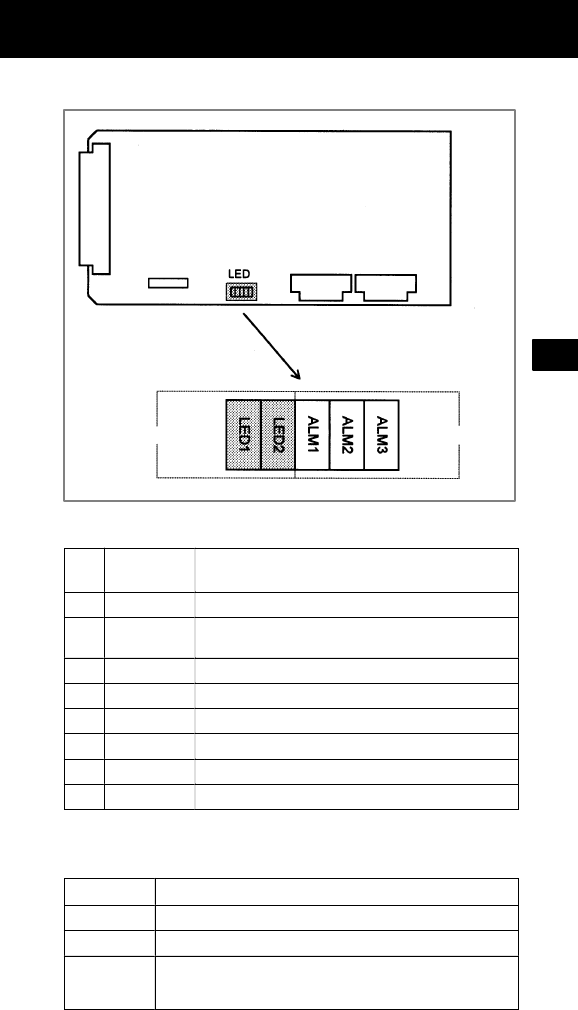

D LED indication

Status (green) Alarm (red)

(1) Changes in status LED (green) indication at power–on time

No.

Status LED

(LED1, 2)

Status

1 jj Power is not supplied.

2 JJ Initial status immediately after power is switched on; the

sub–CPU has not started.

3 jJ RAM initialization.

4 Jj Waiting for system ID to be set up.

5 jj Waiting for software initialization to be completed No. 1

6 JJ Waiting for software initialization to be completed No. 2

7 jJ Initialization of position coder, digital servo circuit, etc.

8 Jj Initialization completed, and usual operation under way

J: On j: Off

(2) Alarm LED (red) indication at system alarm occurrence

Alarm LED

Meaning

ALM1 Bus error on sub–CPU board.

ALM2 Servo alarm.

ALM3 On: DRAM parity or ECC alarm

Blinking: L–bus error (when the CPU peripheral control G/A is

the master)
