10. PMC

633

(7) Deleting the display of all ladder diagram nets [ERALL]

All ladder nets read into the selection monitor screen can be erased

from the screen.

10.1.1.3 Ladder diagram editing screen

On the ladder diagram editing screen, a ladder diagram can be edited to

change its operation.

(1) Display method

<1> Display the ladder diagram monitor display screen by pressing the

[PMCLAD] soft key.

<2> Press the [EDIT] soft key.

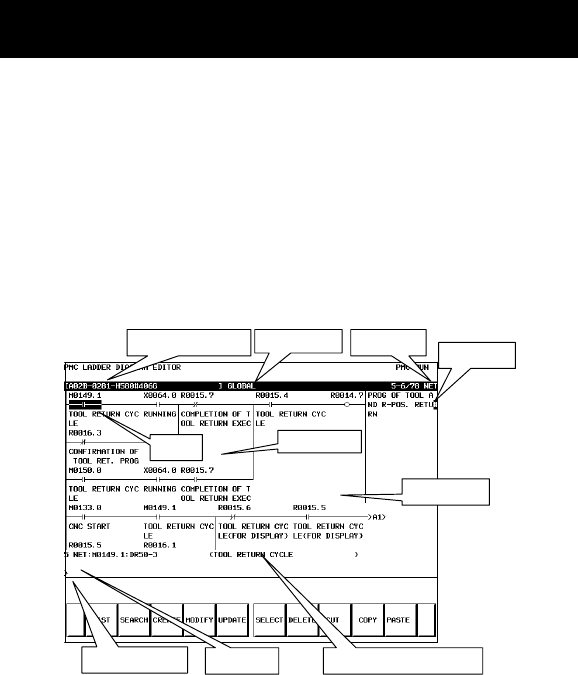

(2) Display information

Title information (remarks) Display program

Display position

information Display position

gage

Cursor

Ladder diagram

display position

Editing target net

Message display line

Key input line Additional information display line

(3) Editing ladder programs

By using the keys below, a ladder diagram can be edited.

D Selecting a subprogram to be edited

<1> Display the program list editing screen by pressing the [LIST]

soft key.

<2> Move the cursor to a subprogram to be edited.

D Searching for a specified address or function instruction

<1> Press the [SEARCH] soft key.

<2> Switch to the soft key display for search.

For the search function, see “(3) Searching for a signal [SEARCH]”

in Subsection 10.1.1.1, “Ladder diagram display screen”.

D Adding a new net

<1> Move the cursor to the position where a new net is to be added.

<2> Press the [ADD] soft key to call the net editing screen. Perform

creation and addition operations to build a new net.

D Modifying the structure of a selected net

<1> Move the cursor to a net to be modified.

<2> Call the net editing screen by pressing the [MODIFY] soft key.

D Changing the bit address of a relay

<1> Move the cursor to a relay to be modified.

<2> Enter a desired bit address then press the ENTER key. The

bit address of the relay where the cursor is placed is changed.
