16. DIGITAL SERVO

835

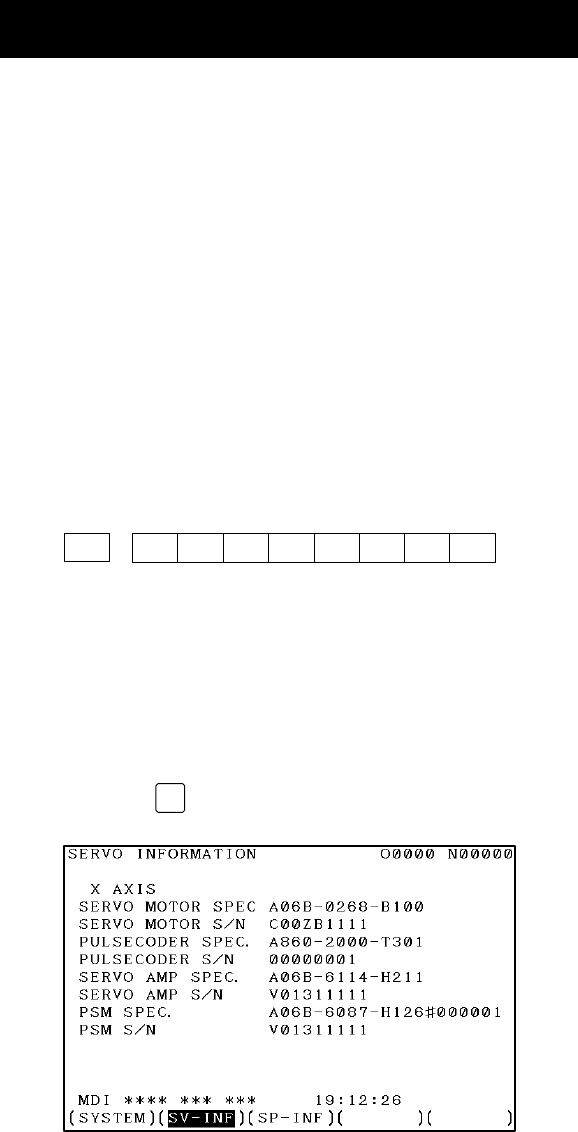

16.4 αi Servo Information Screen

In the αi servo system, ID information output from each of the connected

units is obtained and output to the CNC screen.

The units that have ID information are shown below.

(Remark: Some instances of these units do not have ID information.)

S Servo motor

S Pulse coder

S Servo amplifier module

S Power supply module

NOTE For axes that are not used by the αi servo system, ID information

of connected units cannot be obtained.

ID information is automatically read from each of the connected units during

first startup of the CNC and then recorded. During the second or later

startup, the ID information recorded during first startup can be compared

with the ID information read this time on the screen to check whether the

configuration of the connected units is changed. (If there is a difference

between them, the alarm mark (*) appears.)

The recorded ID information can be edited. Therefore, the ID information of

an unit that does not have ID information can be displayed. (However, the

alarm mark (*) indicating a difference between these IDs appears.)

Parameter

#6 #5 #4 #3 #2 #1 #0

13112

SVI IDW

[Data type] Bit

IDW The edit of the servo information screen or the

spindle information screen is:

0 :Prohibited

1 :Allowed

SVI The servo information screen is:

0 :Displayed

1 :Not displayed

16.4.1 Displaying the servo ID screen

1 Press the

SYSTEM

function key, then press the [System] soft key.

2 Press the [SV–INF] soft key to display the screen as shown below.
