6. HARDWARE

233

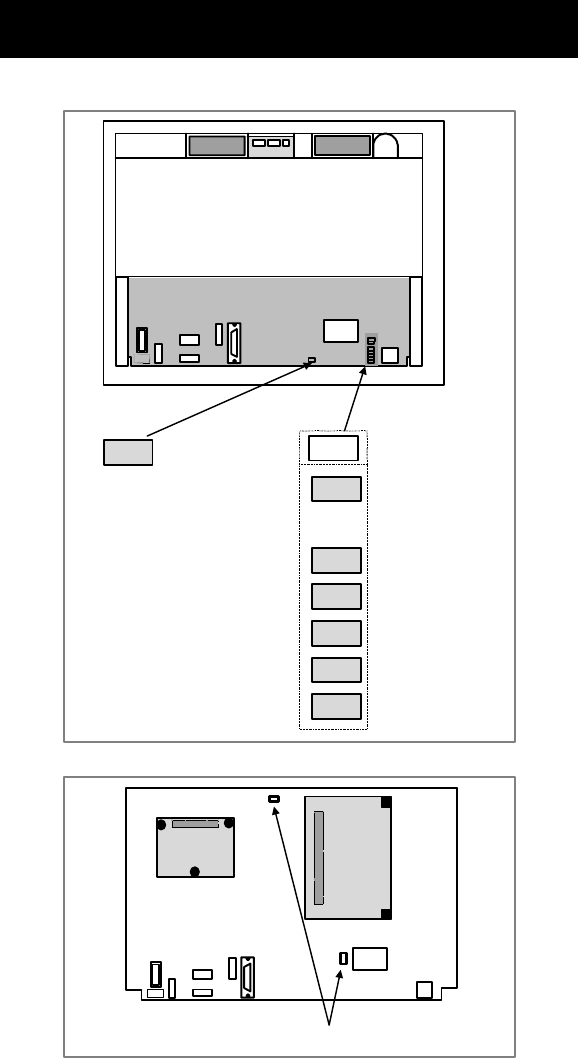

D LED display

Rear of unit

LEDP

Alarm (Red)

Status (Green)

LED1

LED2

LED3

LED4

LED5

LED6

LED7

RESERVE*

Lights when the CE card is

powered on (including during

backup operation).

Lights when the unit failed to

communicate with the NC over

the HSSB.

Lights when the unit communi-

cates with the NC over the HSSB.

Flashes while data is being sent

or received over the Ethernet on

the PC side.

Lights when a link is established in

100 Mb/s mode over the Ethernet

on the PC side.

For some boards, LED3, LED6, and LED7 are not mounted.

D Short plug settings

These short plugs are reserved.

Be sure to remove them.
